Description

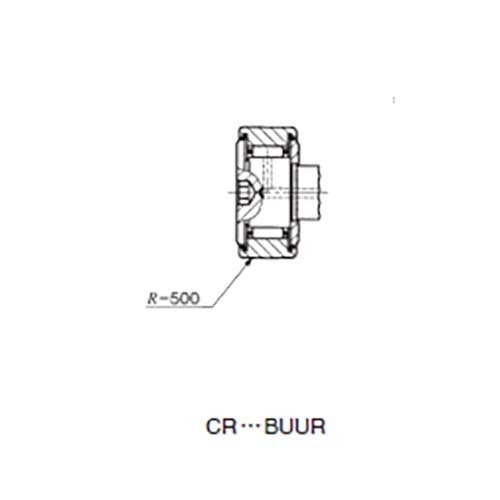

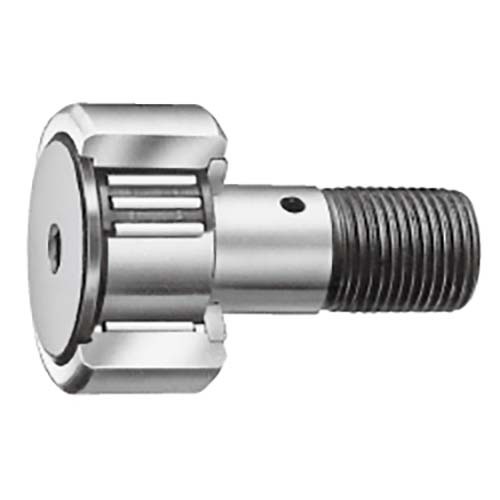

Cam Follower Hex 2RS Crowned Outer Ring (CR)

  • Sealed type.
  • Crowned outer ring.
  • With hexagon hole.
  • CR, Inch series Cam Follower.

About Cam Follower

  • Cam Followers are bearings with a stud incorporating needle rollers in a thick-walled outer ring.
  • They are designed for outer ring rotation, and the outer rings run directly on mating track surfaces.
  • They are widely used as follower bearings for cam mechanisms and for linear motions.

About Structure and Features

  • These bearings are designed for outer ring rotation and have superior rotational performance with a small coefficient of friction and high load capacity.
  • As studs already have threads or steps, they are easy to mount.
  • Cam Followers are follower bearings for cam mechanisms and linear motions and have high rigidity and high accuracy.
  • They are, therefore, used widely for machine tools, industrial robots, electronic devices, and OA equipment.
  • Stainless steel-made Cam Followers are superior in corrosion resistance and suitable for applications in environments where oil cannot be used or water splashed, and in clean rooms.

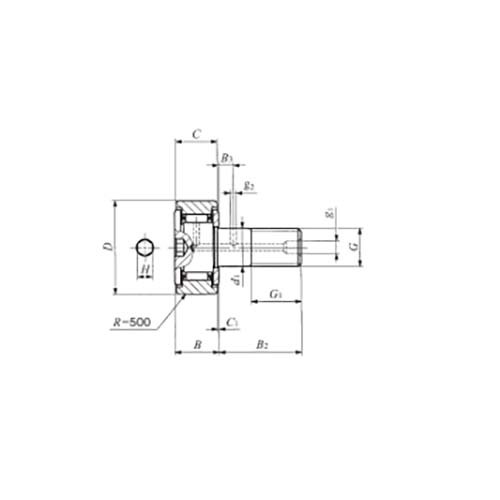

Specifications

  • AIMS SKU A0155918
  • Brand IKO
  • Model Number CR28BUUR/IKO
  • D1 (mm) 19.05
  • C1 (in) 1/32
  • Stud Diameter (mm) 19.05
  • Stud Diameter (inch) 3/4
  • G UNF 3/4 - 16
  • G1 (in) 3/16
  • B max (in) 1.06
  • B2 (in) 1 3/4
  • B3 (in) 7/16
  • B3 (mm) 11.1
  • g2 (mm) 3.969
  • G2 (in) 5/32
  • H (in) 5/16
  • R (in) 1/16
  • Maximum Tightening Torque N-m 100
  • Mounting Dimension f Min. (mm) 32.543
  • Mounting Dimension f Min. (in) 1 9/32
  • B2 (mm) 44.45
  • Roller Diameter 1 3/4 in
  • Stud Diameter 3/4 in
  • Width (in) 1
  • d1 (in) 3/4
  • Basic Static Load Rating C0 (N) 38200
  • Basic Dynamic Load Rating C (N) 25100
  • Roller Width 1 in
  • B Max (mm) 26.8
  • Outside Diameter (in) 1 3/4
  • H (mm) 7.938
  • g1 (mm) 4.762
  • R (mm) 1.588
  • D (mm) 44.45
  • C1 (mm) 0.794
  • C (mm) 25.4
  • Type Cam Follower
SKU: A0155918

IKO Cam Follower Hex 2RS Crowned Outer Ring 3/4 x 1-3/4 x 1"

Cam Follower Hex 2RS Crowned Outer Ring - CR28BUUR

$130.61
