Description

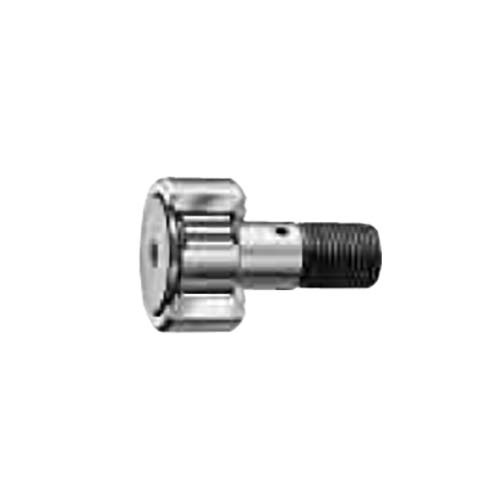

Cam Follower Hex 2RS Cylindrical Outer Ring (CF)

  • With hexagon hole.
  • Sealed type.
  • With the cylindrical outer ring.
  • Standard type cam follower.

About Cam Follower

  • Cam Followers are bearings with a stud incorporating needle rollers in a thick-walled outer ring.
  • They are designed for outer ring rotation, and the outer rings run directly on mating track surfaces.
  • They are widely used as follower bearings for cam mechanisms and for linear motions.

About Structure and Features

  • These bearings are designed for outer ring rotation and have superior rotational performance with a small coefficient of friction and high load capacity.
  • As studs already have threads or steps, they are easy to mount.
  • Cam Followers are follower bearings for cam mechanisms and linear motions and have high rigidity and high accuracy.
  • They are, therefore, used widely for machine tools, industrial robots, electronic devices, and OA equipment.
  • Stainless steel-made Cam Followers are superior in corrosion resistance and suitable for applications in environments where oil cannot be used or water splashed, and in clean rooms.

Specifications

  • AIMS SKU A0156247
  • Brand IKO
  • Model Number CF3BUU/IKO

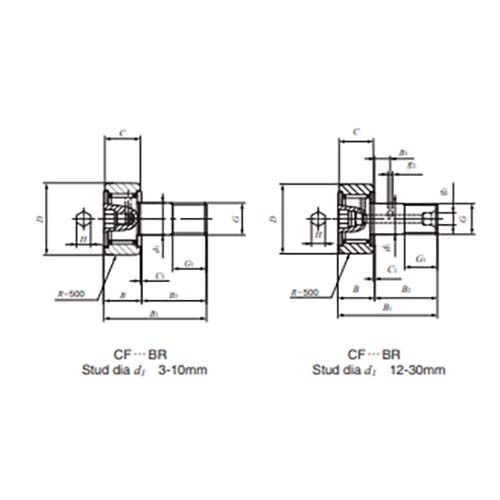

  • D1 (mm) 3
  • Width (mm) 7
  • rs min (mm) 0.2

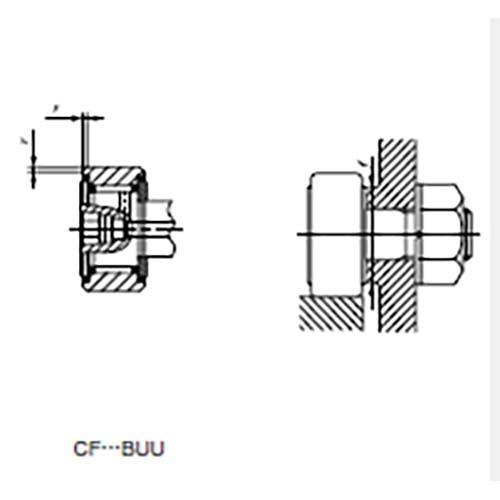

  • Mounting Dimension f Min. (mm) 0.2
  • Maximum Allowable Static Load (n) 1020
  • Maximum Tightening Torque (n-m) 6.8
  • B2 (mm) 9
  • Roller Diameter 10 mm
  • Stud Diameter 3 mm
  • B1 (mm) 17
  • Basic Static Load Rating C0 (N) 1500
  • Basic Dynamic Load Rating C (N) 0.34
  • Roller Width 7 mm
  • Outside Diameter (mm) 10
  • H (mm) 2
  • g1 (mm) 5
  • g (mm) M18 x 1.13
  • b (mm) 8
  • C1 (mm) 0.5
  • Type Cam Follower
SKU: A0156247

IKO Cam Follower Hex 2RS Cylindrical Outer Ring 3 x 10 x 7mm

Cam Follower Hex 2RS Cylindrical Outer Ring (CF)
