Specifications
- AIMS SKU A0118869
- Brand Seco
- Model Number 02566324
- Barcode Number 66324025001009
- Designation XOMX120408TR-D14 MK1500
- Grade MK1500
- Grade Type Carbide CVD
- Cutting Edge Count (CEDC) 2
- Insert Hand (IH) Right
- Cutting Edge Effective Length (LE) mm 11.6
- Insert Thickness (S) mm 5.07
- Cutting Rake Deg 1 deg
- Corner Radius (RE) mm 0.8
- Insert Seat Size Code (SSC) XOMX12..
- Wiper Edge Length (bs) Mm 1.6
- Clearance Angle Major) Deg 15.0 deg
- Insert Width (w1) Mm 8.2
- Type Chamfer Turbo 12 Milling Insert
SKU: A0118869

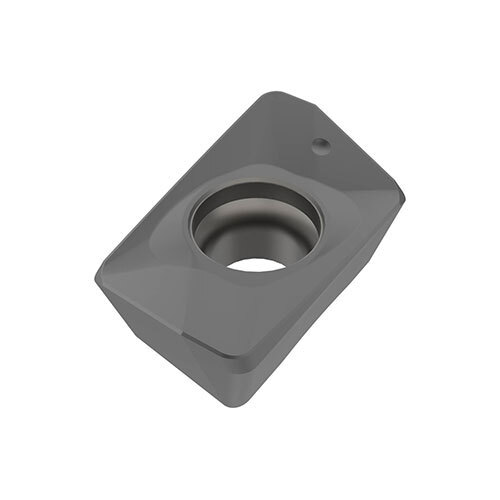

Seco 11.6 x 5.07mm MK1500 1° Chamfer Mill Turbo 12 Milling Insert XOMX120408TR-D14,MK1500 Pack of 10
Carbide CVD (D14) Chamfer Mill Turbo 12 Milling Insert
$281.24
