Description

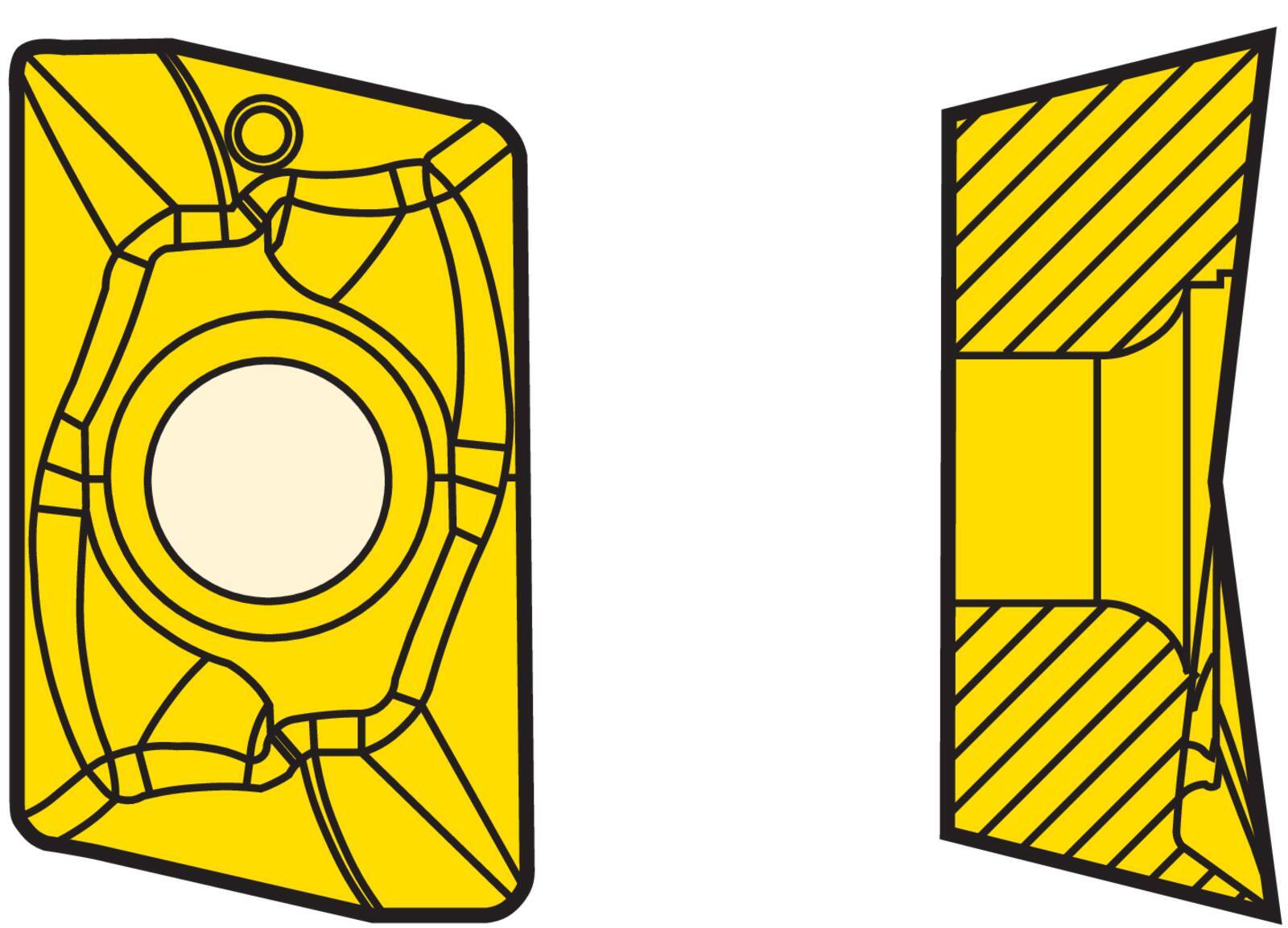

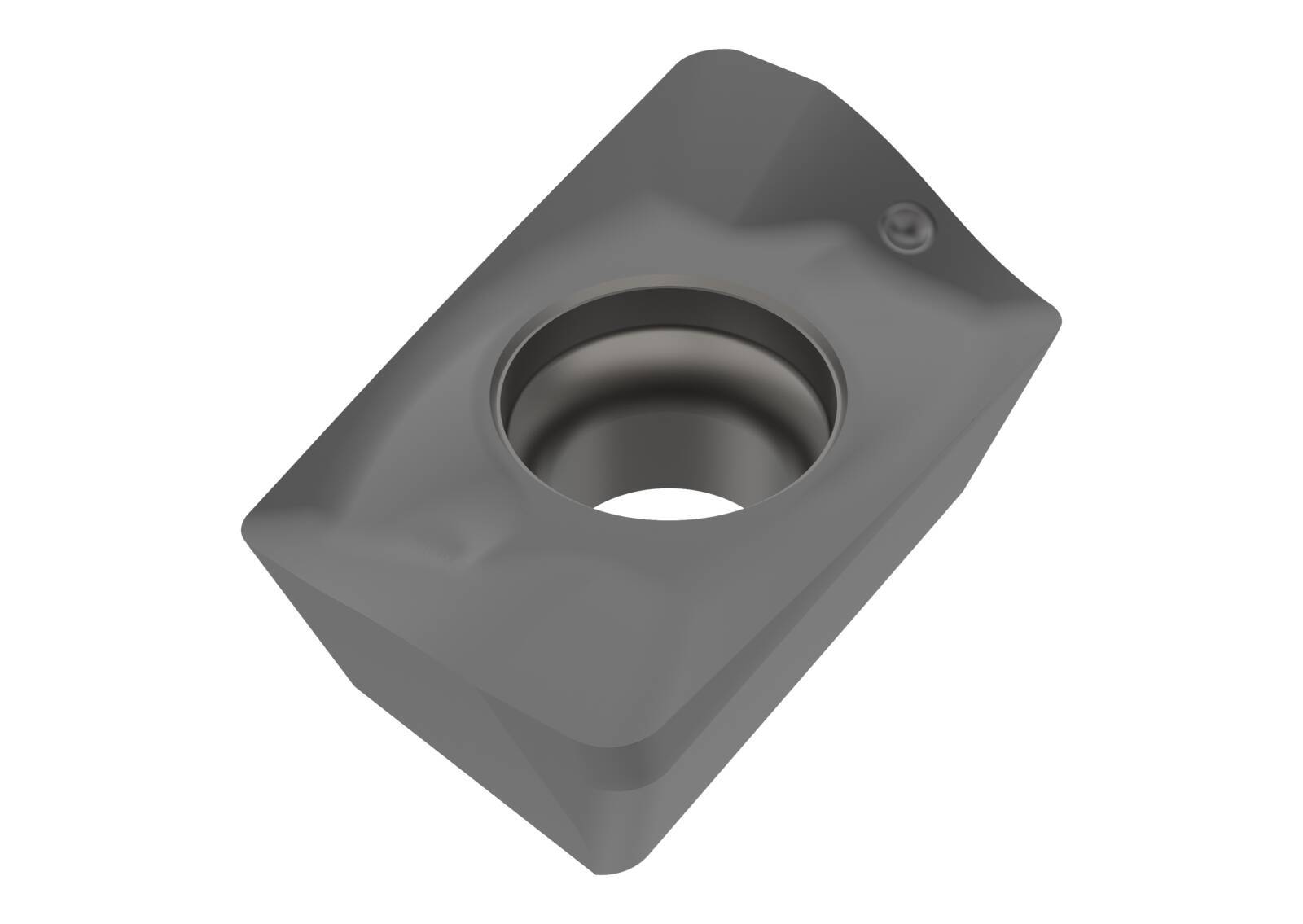

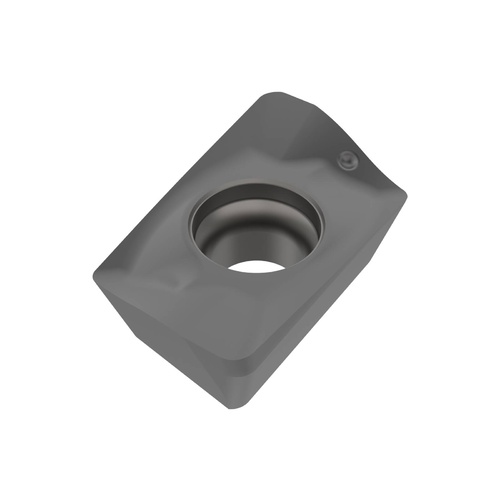

Carbide CVD (M07) Turbo 12 Square Shoulder Milling Insert

  • MS2500 grade, carbide CVD.
  • CVD (Chemical Vapour Deposition).
  • CVD-coated grades are suitable for wear resistance in demanding applications with high feed rates and intermediate to high cutting speed.

MS2500 Grade

  • Optimization grade for superalloy materials, also suitable for rough milling in tool steel.
  • Ti (C, N) – Al2O3.

About Turbo Square Shoulder Milling

  • Aggressively optimize your cutting properties with Seco’s Turbo family of cutters that reduce heat generation and cutting forces.
  • These cutters are available in a variety of configurations, all with copy milled pockets for insert stability and two pitch configurations to tackle almost every material.
  • Maximize output in a wide range of applications including; roughing, semi-finishing, finishing.
  • Methods include all facing, slotting, profiling contouring, helical interpolation, ramping, and plunging applications.

Specifications

  • AIMS SKU A0118882
  • Brand Seco
  • Model Number 02638285
  • Barcode Number 38285026001009
  • Designation XOEX120408R-M07 MS2500
  • Grade MS2500
  • Grade Type Carbide CVD
  • Cutting Edge Count (CEDC) 2
  • Insert Hand (IH) Right

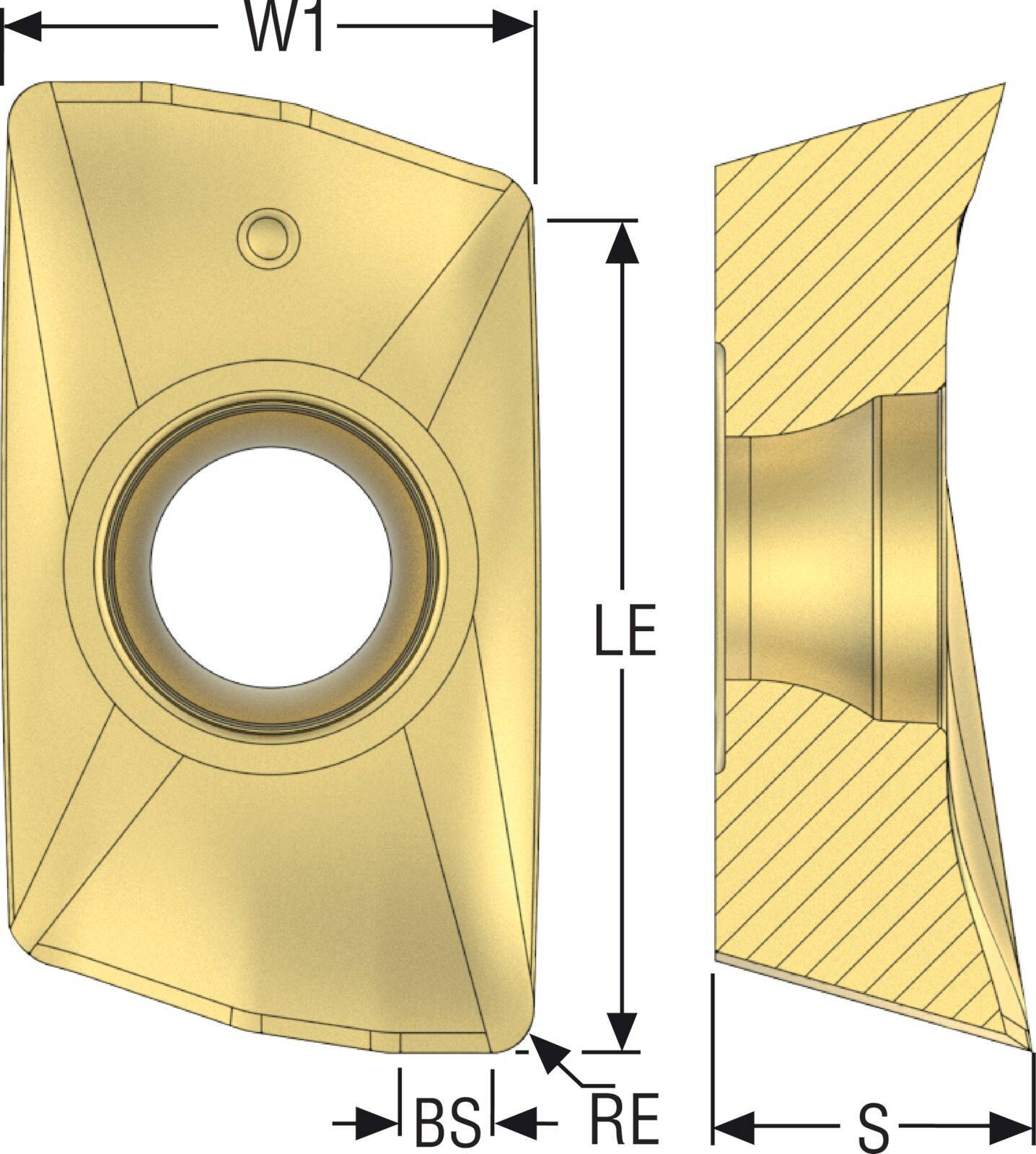

  • Cutting Edge Effective Length (LE) mm 12
  • Insert Thickness (S) mm 5.03
  • Cutting Rake Deg 20.3 deg
  • Corner Radius (RE) mm 0.8
  • Insert Seat Size Code (SSC) XOEX12..
  • Wiper Edge Length (bs) Mm 1.6
  • Clearance Angle Major) Deg 15.0 deg
  • Insert Width (w1) Mm 8.2
  • Type Chamfer Turbo 12 Milling Insert
SKU: A0118882 On Sale

Seco 12 x 5.03mm MS2500 20.3° Chamfer Mill Turbo 12 Milling Insert XOEX120408R-M07,MS2500 Pack of 10

Carbide CVD (M07) Chamfer Mill Turbo 12 Milling Insert

$299.83
$352.74
