Specifications
- AIMS SKU A0118892
- Brand Seco
- Model Number 02566327
- Barcode Number 66327025001000
- Designation XOMX120408TR-MD13 MK1500
- Grade MK1500
- Grade Type Carbide CVD
- Cutting Edge Count (CEDC) 2
- Insert Hand (IH) Right
- Cutting Edge Effective Length (LE) mm 11.6
- Insert Thickness (S) mm 5.07
- Cutting Rake Deg 14.6 deg
- Corner Radius (RE) mm 0.8
- Insert Seat Size Code (SSC) XOMX12..
- Wiper Edge Length (bs) Mm 1.6
- Clearance Angle Major) Deg 15.0 deg
- Insert Width (w1) Mm 8.2
- Type Chamfer Turbo 12 Milling Insert
SKU: A0118892

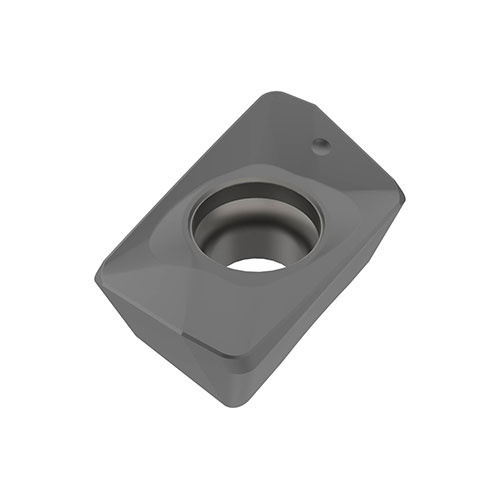

Seco 11.6 x 5.07mm MK1500 14.6° Chamfer Mill Turbo 12 Milling Insert XOMX120408TR-MD13,MK1500 Pack of 10
Carbide CVD (MD13) Chamfer Mill Turbo 12 Milling Insert
$281.24
