Specifications
- AIMS SKU A0118872
- Brand Seco
- Model Number 00005980
- Barcode Number 5980000001007
- Designation XOEX120408FR-E06 F15M
- Grade F15M
- Grade Type Carbide PVD
- Cutting Edge Count (CEDC) 2
- Insert Hand (IH) Right
- Cutting Edge Effective Length (LE) mm 12
- Insert Thickness (S) mm 5.03
- Cutting Rake Deg 27.2 deg
- Corner Radius (RE) mm 0.8
- Insert Seat Size Code (SSC) XOEX12..
- Wiper Edge Length (bs) Mm 1.6
- Clearance Angle Major) Deg 15.0 deg
- Insert Width (w1) Mm 8.2
- Type Chamfer Turbo 12 Milling Insert
SKU: A0118872

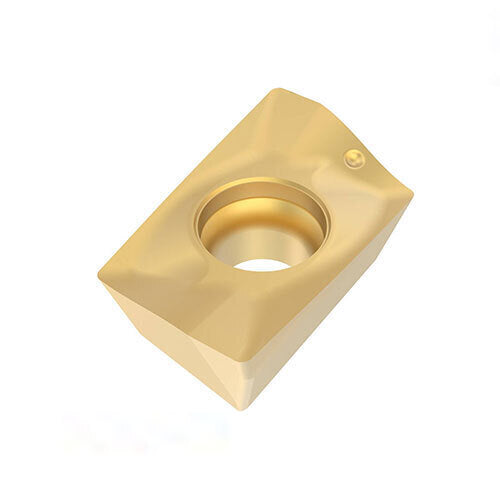

Seco 12 x 5.03mm F15M 27.2° Chamfer Mill Turbo 12 Milling Insert XOEX120408FR-E06,F15M Pack of 10
Carbide PVD (E06) Chamfer Mill Turbo 12 Milling Insert
$321.28
