Description

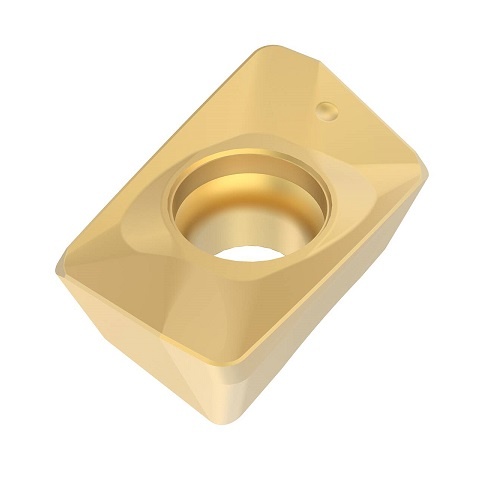

Carbide PVD (M12) Turbo 12 Square Shoulder Milling Insert

F40M grade, carbide PVD.
PVD (Physical Vapour Deposition).
PVD coated grades are recommended for applications with low feed rates where high edge toughness is required.
PVD-coated grades are suitable for applications with low to intermediate cutting speed.

F40M Grade

PVD-coated grade for fine to medium rough milling. First choice for milling with small feeds and/or low cutting speeds.
Excellent for milling when there is a risk of vibrations and when coolant is used. Recommended for machining superalloys.
(Ti, Al) N – TiN.

About Turbo Square Shoulder Milling

Aggressively optimize your cutting properties with Seco’s Turbo family of cutters that reduce heat generation and cutting forces.
These cutters are available in a variety of configurations, all with copy milled pockets for insert stability and two pitch configurations to tackle almost every material.
Maximize output in a wide range of applications including; roughing, semi-finishing, finishing.
Methods include all facing, slotting, profiling contouring, helical interpolation, ramping, and plunging applications.
