Description

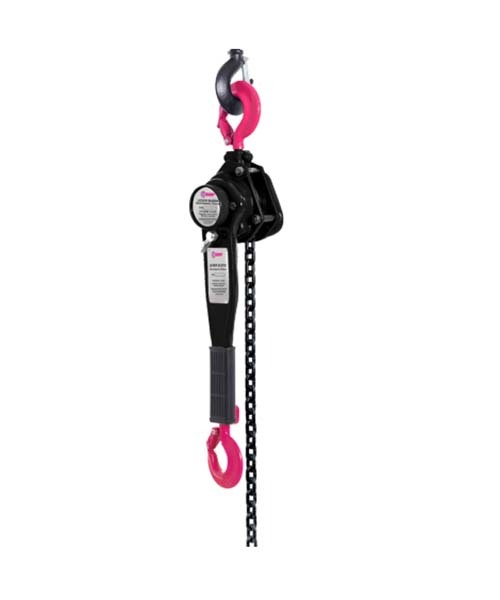

Challenger Lever Block Gen II

  • The extensive range of Challenger Lever Blocks feature superior quality at an affordable price. They are suitable for applications in the mining, construction, transport and automotive industry. The Challenger Lever Block uses the latest technology to ensure a higher quality design, operator safety and longer service life.

Features

  • All Challenger models are manufactured to comply with AS1418.2.
  • “T” type hooks for improved load holding integrity (except for the 250kg capacity).
  • New design double pawl safety springs to eliminate sticking.
  • New style cast hand wheel for added strength and durability.
  • Encapsulated needle bearings and side plate bearings for smoother operation.
  • Key internal components are CNC machined before being heat-treated and toughened.
  • No aluminum content which ensures suitability for mining applications.
  • Overall better design and improved finish to prolong life expectancy.

Specifications

  • AIMS SKU A0192370
  • Brand Challenger
  • Model Number CLB205
  • Lift Height (m) 1.5 m
  • Load Chain (mm) Ø5 x 15
  • Net Weight (kg) 3.7
  • Test Load (kg) 750
  • Effort To Lift Full Load 248 N
  • Dimension A (mm) 143
  • Dimension B (mm) 85
  • Dimension C (mm) 118
  • Dimension D (mm) 20
  • Dimension E (mm) 22
  • Rated Capacity 500 kg
  • No. Of Falls 1
  • Length of Lever Handle (D) (mm) 253
  • Type Lever Block
SKU: A0192370

Challenger 500kg (0.5kg) Lever Block Gen II x 1.5m

Challenger Lever Block Gen II

$162.61
