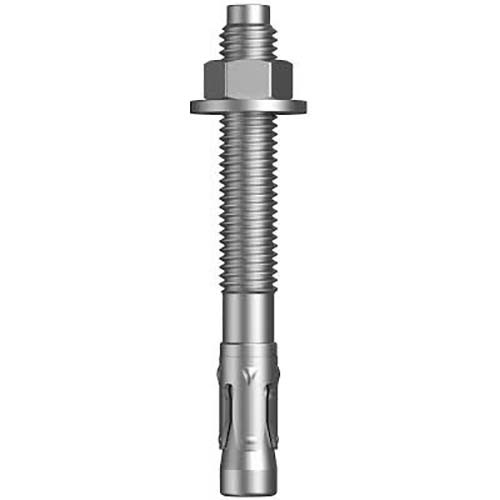

Clawbolt Pro Wedge Anchor C1 & C2 Fire Rated Zinc Plated - Hobson

Description

Clawbolt Pro Wedge Anchor C1 and C2 Fire Rated Zinc Plated ETA Option 1

M8 with ETA Approval (Option 1) and Fire Rating.
M10 and M16 with ETA Approval (Option 1), Fire Rating and Seismic Certified (C1).
M12 and M20 with ETA Approval (Option 1), Fire Rating and Seismic Certified (C1 and C2).

Features

Quick and easy to install.
Immediate loading.
Intended working life- 50 years.
ETA Approval- Option 1.
Fire Rated.

Applications

Suitable for cracked and non-cracked concrete.
Pallet racking.
Formwork support fastening.
Mechanical, electrical and pipe bracket fixing.
Structural columns and beams.
Facade installation.
Stadium seating.
Guide and hand rails.

Specifications

AIMS SKU A0133220

Length (mm) 110

Size M12

Pitch Coarse (mm) 1.75

Pitch Fine (mm) 1.5

Pitch Extra Fine (mm) 1.25

Threads Per Inch in UNC 13

Threads Per Inch in UNF 20

Threads Per Inch in BSW 12

Threads Per Inch in BSF 16

Family Code EAWMSZD18M

Type Clawbolt Wedge Anchor
Finish Zinc Plated
