*** JTEKT (formerly Koyo Brand) ***

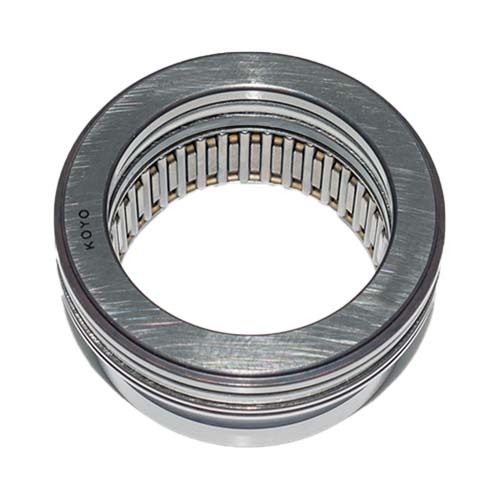

Combined Needle Roller Bearing w/ Thrust Ball & Dust Cap (NAXK.Z)

  • NAXK, Machine outer ring thrust ball, and radial needle roller bearing without inner ring.
  • Z (Thrust washer retaining dust cap).

About Needle Roller Bearings Combined Bearings (Metric Series)

  • Combined bearings consist of a radial bearing (needle roller bearing) and a thrust bearing (ball, roller, or needle bearing).
  • The thrust roller bearing is usually a cylindrical roller thrust bearing.
  • Combined bearings make an effective alternative in place of two bearings that can be used with or without matching inner rings and thrust washers though these are listed opposite the bearing part numbers, where possible, on the following pages of tables for convenience.

Specifications

  • AIMS SKU A0157021
  • Brand Koyo
  • Model Number NAXK10Z/KOYO
  • Outside Diameter 25 mm
  • Width (mm) 23
  • Fatigue Load Limits Cu (kn) Thrust 0.63
  • Fatigue Load Limits Cu (kn) Radial 1.35
  • Basic Load Rating Thrust C0a 14
  • Basic Load Rating Thrust Ca 10.4
  • Basic Load Rating Radial (kn) C0r 8.7
  • Basic Load Rating Radial (kn) Cr 7.9
  • Limiting Speed (min?1) Oil Lub. 9500

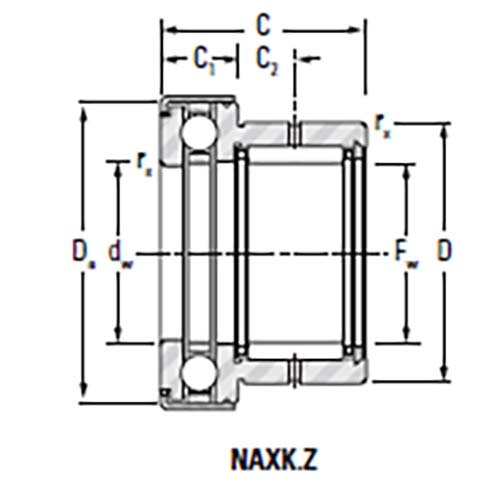

  • R Min. (mm) 0.3
  • C2 (mm) 6.5
  • Dw (e7) (mm) 10
  • Fw (mm) 10
  • Bore Diameter 10 mm
  • Width 23 mm
  • Outside Diameter (mm) 25
  • D (mm) 19
  • C1 (mm) 9
  • Shaft Diameter (mm) 10
  • Type Needle Roller Bearing
SKU: A0157021

Koyo/JTEKT Combined Needle Roller Bearing w/ Thrust Ball & Dust Cap 10 x 25 x 23mm

Combined Needle Roller Bearing w/ Thrust Ball & Dust Cap

$110.91
