Description

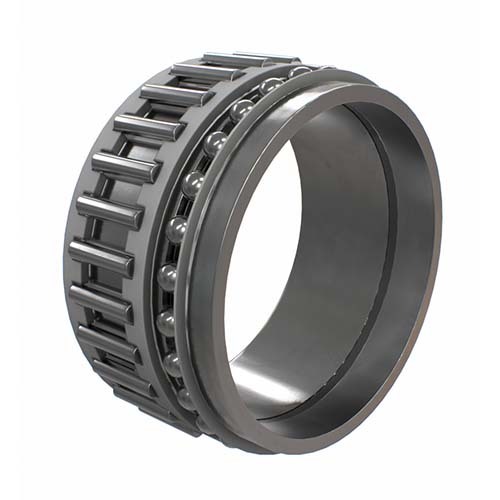

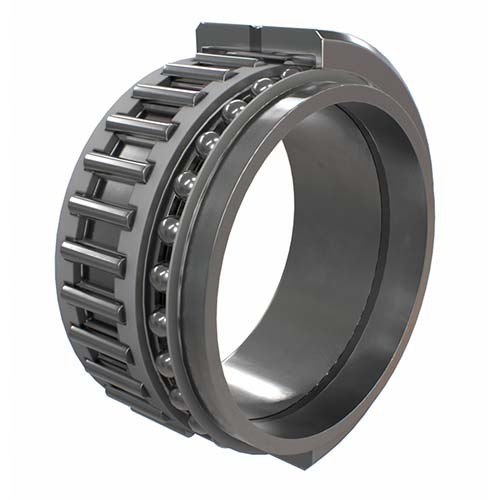

Combined Type Needle Roller Bearing With 3-Point Contact (NATB)

  • Needle Roller Bearings with Three-point contact ball bearing.
  • These bearings can withstand heavy radial loads and bi-directional axial loads at the same time during highspeed rotation.
  • Since the non-interchangeable inner rings are separated at the center of the ball raceway surface, they must be firmly tightened against the shaft in the axial direction.
  • The axial clearance of this bearing is 0.1 - 0.3 mm, and like NATA59, the axial load should not exceed 25% of the radial load.

About Combined Type Needle Roller Bearings

  • Combined Type Needle Roller Bearings are combinations of a radial bearing and a thrust bearing.
  • Caged needle roller bearings are used as radial bearings and thrust ball bearings or thrust roller bearings are used as thrust bearings.
  • They can be subjected to radial loads and axial loads simultaneously.

About Structure and Features

  • They are compact and very economical, and can be subjected to radial loads and axial loads simultaneously.
  • They are widely used for machine tools, textile machinery, and industrial machinery.

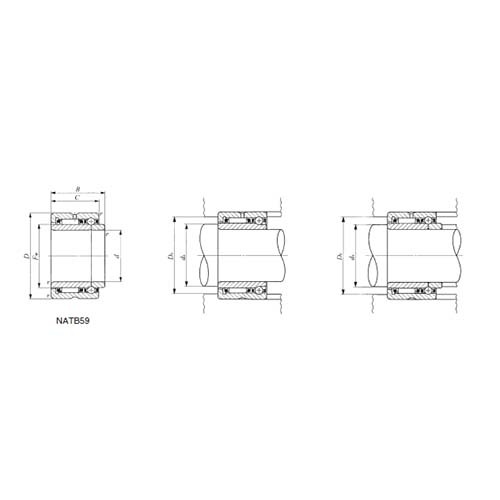

Specifications

  • AIMS SKU A0154336
  • Brand IKO
  • Model Number NATB5902/IKO
  • Width (mm) 20
  • C (mm) 18
  • Inside Diameter (mm) 15
  • Outside Diameter (mm) 28
  • rs min 0.3
  • Fw (mm) 20
  • Allowable Rotational Speed (rpm) 20000
  • Da Max 26
  • da min 17
  • Basic Dynamic Load Rating C (N) Radial 7710
  • Basic Dynamic Load Rating C (N) Axial 1900
  • Basic Static Load Rating C0 (N) Radial 10200
  • Basic Static Load Rating C0 (N) Axial 2920
  • Type Needle Roller Bearing
SKU: A0154336

IKO Combined Type Needle Roller Bearing With 3-Point Contact 15 x 28 x 20mm

Combined Needle Roller With 3-Point Contact - NATB5902

$155.73
