Description

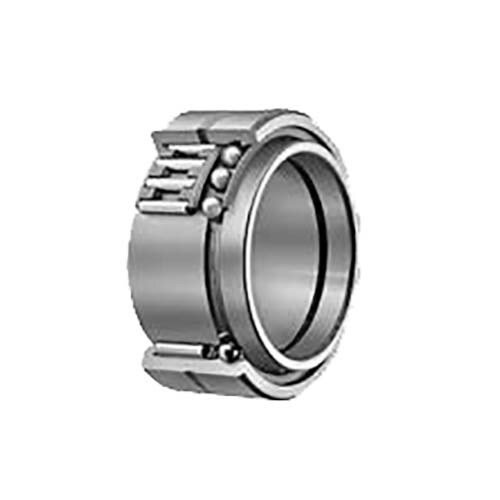

Combined Type Needle Roller Bearing With Angular Contact (NATA)

  • Needle Roller Bearings with angular contact ball bearing.
  • In this series, caged needle roller bearings are combined with angular contact ball bearings to receive thrust loads.
  • These bearings conform to the international dimension series #59, which is based on the ISO Standard.
  • They can withstand heavy radial loads and unidirectional axial loads simultaneously.
  • When the axial load exceeds 25% of the radial load, the radial load will be induced in the angular contact ball bearing, and bearing life will be affected.
  • The relationship between the two loads must therefore be taken into careful consideration.

About Combined Type Needle Roller Bearings

  • Combined Type Needle Roller Bearings are combinations of a radial bearing and a thrust bearing.
  • Caged needle roller bearings are used as radial bearings and thrust ball bearings or thrust roller bearings are used as thrust bearings.
  • They can be subjected to radial loads and axial loads simultaneously.

About Structure and Features

  • They are compact and very economical, and can be subjected to radial loads and axial loads simultaneously.
  • They are widely used for machine tools, textile machinery, and industrial machinery.

Specifications

  • AIMS SKU A0154347
  • Brand IKO
  • Model Number NATA5902/IKO

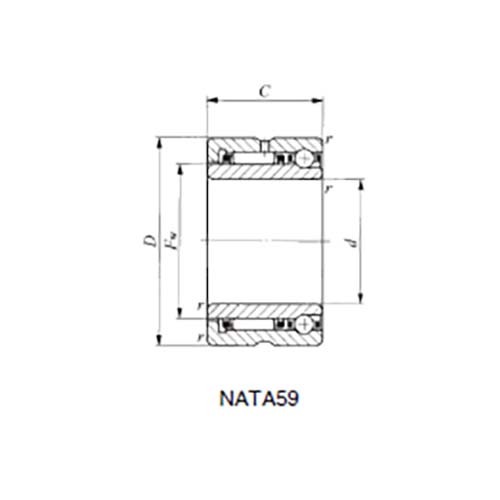

  • Width (mm) 18
  • b (mm) 20
  • Inside Diameter (mm) 15
  • Outside Diameter (mm) 28
  • rs min 0.3
  • Fw (mm) 20
  • Allowable Rotational Speed (rpm) 20000
  • Da Max 26
  • da min 17
  • Basic Dynamic Load Rating C (N) Radial 7710
  • Basic Dynamic Load Rating C (N) Axial 1900
  • Basic Static Load Rating C0 (N) Radial 10200
  • Basic Static Load Rating C0 (N) Axial 2920
  • Type Needle Roller Bearing
SKU: A0154347

IKO Combined Type Needle Roller Bearing With Angular Contact 15 x 28 x 18mm

Combined Needle Roller With Angular Contact - NATA5902

$112.57
