Description

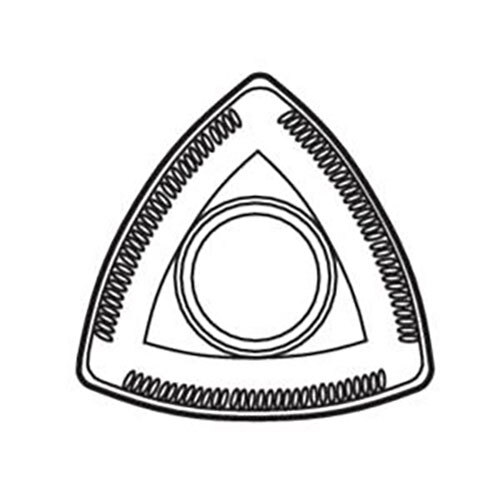

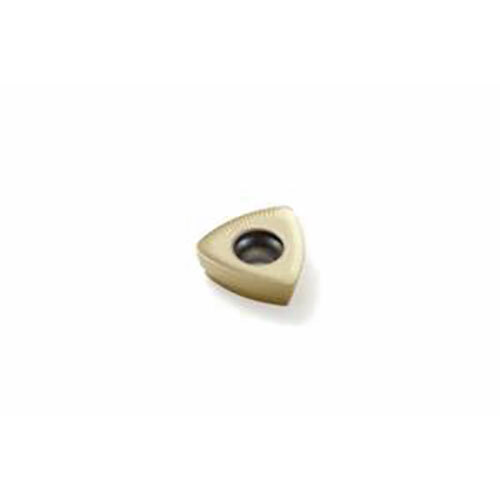

Seco Copy Milling Single Sided Insert 20 x 0.6 x 5.5mm F40M Grade (ME10 Geometry) 218.19-200T-05-ME10,F40M Pack of 10

Copy Milling Insert F40M Grade (ME10 Geometry)

  • F40M grade.
  • ME10 geometry.
  • 3 cutting edge, single-sided insert.
  • 218.19-200 Insert Seat Size Code (SSC).

About F40M Grade

  • PVD coated grade.
  • The PVD-coated grade for fine to medium rough milling.
  • First choice for milling with small feeds and/or low cutting speeds.
  • Excellent for milling when there is a risk of vibrations and when coolant is used.
  • Recommended for machining superalloys.
  • (Ti, Al) N – TiN.

Specifications

  • AIMS SKU A0121885
  • Brand Seco
  • Model Number 02505795
  • Barcode Number 5795025001006
  • Designation 218.19-200T-05-ME10,F40M
  • Grade F40M
  • Cutting Edge Count (CEDC) 3
  • Insert Hand (IH) Both
  • Insert Thickness (S) mm 5.5
  • Corner Radius (RE) mm 0.6
  • Insert Seat Size Code (SSC) 218.19-200
  • Inscribed Circle Diameter (IC) mm 12.7
  • Clearance Angle Major (an) Deg 12.0 deg
  • Curved Cutting Edge Radius (CCER) mm 20
  • Barcode 5795025001006
  • Type Milling Insert
  • Grade Type Carbide PVD

Video

SKU: A0121885

Seco Copy Milling Single Sided Insert 20 x 0.6 x 5.5mm F40M Grade (ME10 Geometry) 218.19-200T-05-ME10,F40M Pack of 10

Copy Milling Insert F40M Grade (ME10 Geometry)

$408.02
