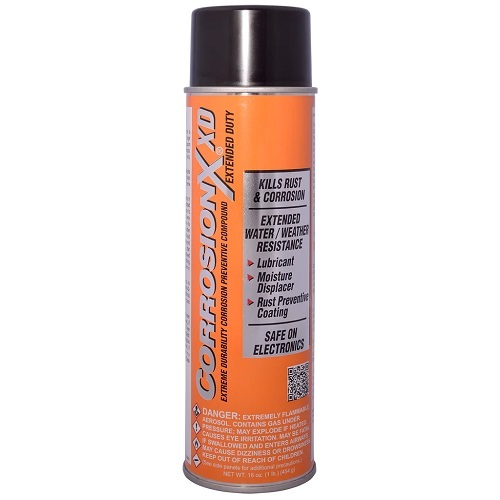

CorrosionX XD Corrosion Inhibitor, Moisture Displacer & Lubricant

  • CorrosionX Extended Duty (also known as CorrosionX XD) is a medium-build (thickened) version of Corrosion. The higher viscosity offers longer-term resilience against displacement of removal by splash or spray. CorrosionX XD penetrates existing rust and corrosion, displaces moisture, and prevents electrolysis. It leaves a non-hardening, self-healing coating for maximum protection against moisture intrusion while providing outstanding, long-lasting lubrication for all moving parts. Performs on already wet and corroded surfaces as well.
  • Being thinner than CorrosionX Heavy Duty, XD can be easily atomized using Corrosion Technologies' Handi-Spray application systems. As a medium-build film, CorrosionX Extended Duty does not accumulate dust and dirt like grease does.
  • CorrosionX XD contains no wax, tar, or silicone, and unlike wax coatings, will not dry, harden or crack under stress. Safe on point, glass, gelcoat, wiring insulation, most rubber, plastics, and electronics.

Physical Characteristics

Color Greenish Brown Volume Solids 95%
Appearance Clear Thin Film Film Thickness 0.0029""""
Odor Petroleum pH N/A
Specific Gravity @ 15.6°C 0.903 Vapor Pressure @38°C  >1 mm Hg
Viscosity, cSt @ 40°C 47.3 Solubility in Water Negligible
Boiling Point >210°C / 410°F  lash Point c.o.c. >132°C / 270°F

Performance Properties

Corrosion Protection:

Salt Spry, hrs. 450 ASTM B117
(Film Thickness) 3.0 mils
Humidity Cabinet, hrs. 1700 ASTMD-1748

Electrical:

Dielectric Strength >32,000V typ.  ASTMD-877

Lubrication:

Anti-Wear 0.35 mm* ASTMD-4172

*Note: The smaller the number, the better the performance. A standard lubricating oil of the same viscosity would yield a value of 1.0 - 1.2 mm.

Specifications

  • AIMS SKU A0182911
  • Brand CorrosionX
  • Model Number 97102-CORROX
  • Packaging Type Aerosol
  • Type Corrosion Inhibitor
SKU: A0182911

CorrosionX 97102 Extended Duty Corrosion Inhibitor, Moisture Displacer & Lubricant Aerosol 473ml

CorrosionX XD Corrosion Inhibitor & Lubricant

$107.01
