Curved Tooth Gear Coupling Half Pilot Bore - Finer Power Transmissions

Description

***Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

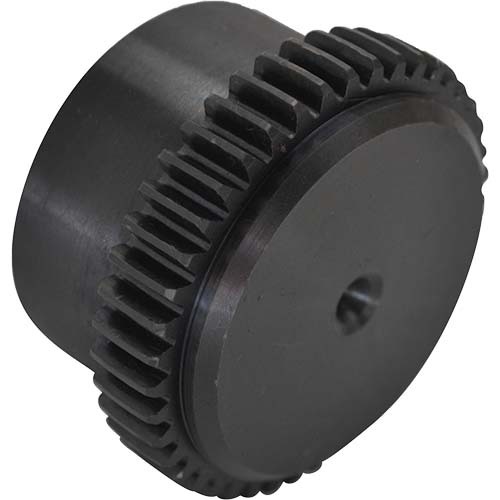

Curved Tooth Gear Coupling Half Pilot Bore

Curved tooth gear hub half.

About Curved Tooth Gear Coupling

The Curved Tooth Gear Coupling consists of 2 geared hubs and a curved tooth nylon sleeve.

About Product Characteristic

Double-Section type curved-tooth gear couping.
Widely applicable in various mechanical & hydraulic fields.
Nylon & steel matched, maintenance free.
Able to offset axial, radial & angular misalignments.
Axial plugging assembly, very convenient Nylon Toothed Sleeve.

Specifications

AIMS SKU A0151025

d1 48

D 30

E 4

L 37

Max Bore (mm) 19

L1 / L2 25

LO 54

M, N 8.5

Torque Rating (nm) 16

Weight (Kg) Hub Half 0.21

Type Gear Coupling

Calculate Shipping

Resources

Technical Data Sheet
