Description

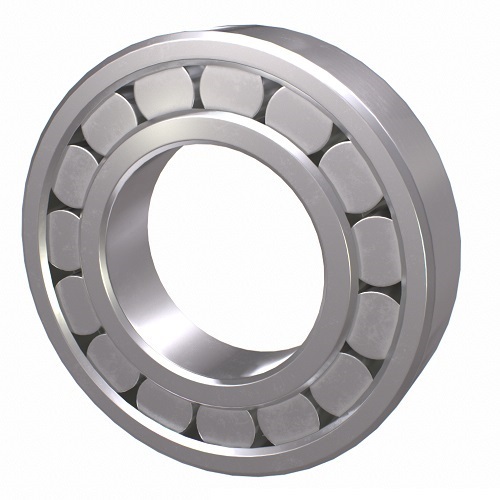

 Cylindrical Roller Bearings

  • Cylindrical roller bearings are designed to have heavy radial load- carrying capacity.
  • Cylindrical roller bearings are commonly separable and easy to mount and dismount.
  • Rolling elements are ground to provide maximum contact with the raceway and are precisely crowned to avoid edge loading due to any shaft misalignments.

Specifications

  • AIMS SKU A0105378
  • Brand NACHI
  • Model Number NJ204/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 20 x 47 x 14
  • R (min) 1
  • Basic Dynamic Load Rating (n) 15400
  • Basic Static Load (N) 12700
  • Limiting Speed (rpm) Grease Lubrication 15000
  • Limiting Speed (rpm) Oil Lubrication 18000

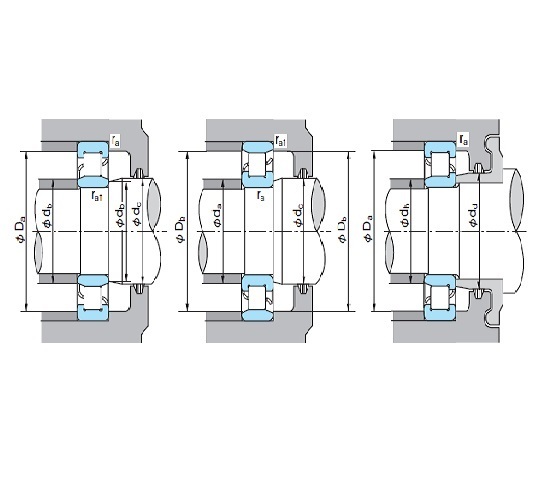

  • Abutment And Fillet Dimension Da (min) Mm 26
  • Abutment And Fillet Dimension Da (max) Mm 41
  • Abutment And Fillet Dimension Ra (max) Mm 1
  • Type Cylindrical Roller Bearings
  • System of Measurement Metric
  • Series No. 200 - 300
SKU: A0105378 On Sale

NACHI NJ204 Cylindrical Roller Bearings 200 Series NJ 20 x 47 x 14mm

Cylindrical Roller Bearings 200 Series NJ

$29.12
$41.60
