Description

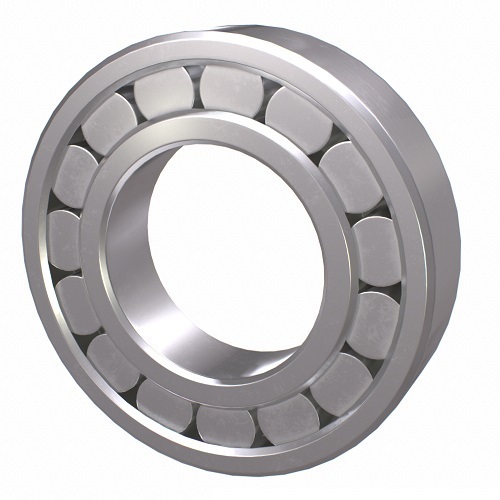

 Cylindrical Roller Bearings

  • Cylindrical roller bearings are designed to have heavy radial load- carrying capacity.
  • Cylindrical roller bearings are commonly separable and easy to mount and dismount.
  • Rolling elements are ground to provide maximum contact with the raceway and are precisely crowned to avoid edge loading due to any shaft misalignments.

Specifications

  • AIMS SKU A0105389
  • Brand NACHI
  • Model Number NU203/NACHI

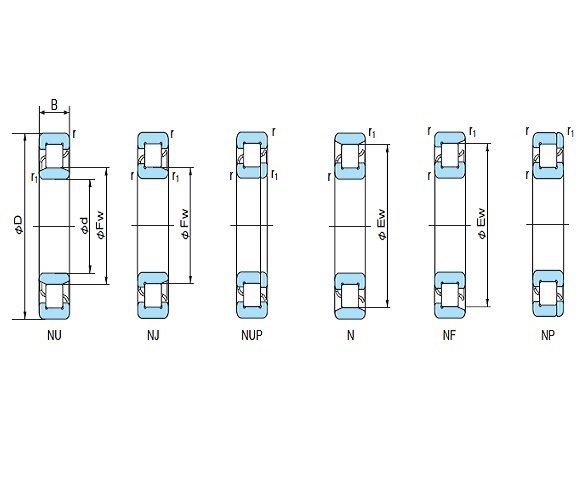

  • Bore Diameter x Outer Diameter x Width (mm) 17 x 40 x 12
  • R (min) 0.6
  • Basic Dynamic Load Rating (n) 12600
  • Basic Static Load (N) 7950
  • Limiting Speed (rpm) Grease Lubrication 16000
  • Limiting Speed (rpm) Oil Lubrication 19000

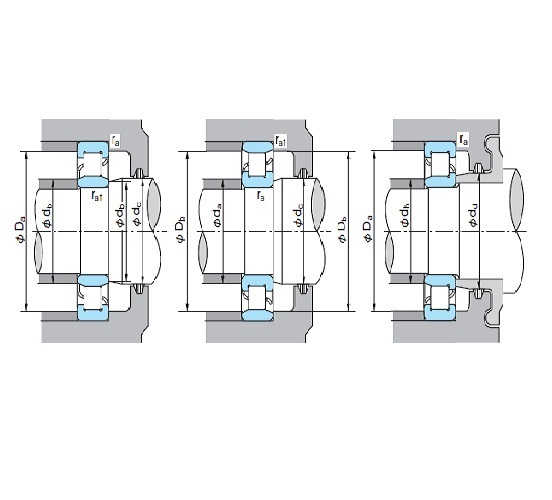

  • Abutment And Fillet Dimension Da (min) Mm 22
  • Abutment And Fillet Dimension Da (max) Mm 35
  • Abutment And Fillet Dimension Ra (max) Mm 0.6
  • Type Cylindrical Roller Bearings
  • System of Measurement Metric
  • Series No. 200 - 300
SKU: A0105389

NACHI NU203 Cylindrical Roller Bearings 200 Series NU 17 x 40 x 12mm

Cylindrical Roller Bearings 200 Series NU
