Description

*** JTEKT (Formerly Koyo Brand) ***

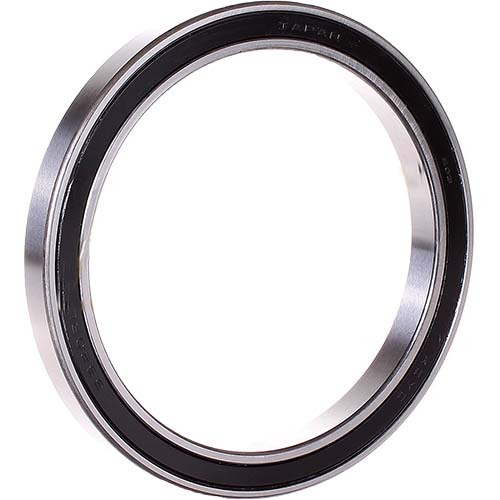

Deep Groove Ball Bearing Non-Contact Rubber Seal - 6900 Series

About Deep Groove Ball Bearing

Deep groove ball bearings are available in a variety of sizes and are the most popular of all rolling bearings.
This type of bearing supports radial load and a certain degree of axial load in both directions simultaneously.

Shielded/sealed type

With locating snap ring

Bearings with a locating snap ring can be fitted to the housing easily, as the locating snap ring facilitates axial positioning.

Extra-small ball bearings and miniature ball bearings

The open type is widely used. Also available are the shielded/sealed type and the flanged type; the latter is easily positioned in the axial direction.

Features Deep Groove Radial Bearing

Type: Open Type, Shielded/ sealed type, With locating snap ring, Maximum type, and Double-row.
The most popular rolling bearing type used in a wide variety of industries and applications.
The inner and outer rings have deep uninterrupted grooves.
They can support radial loading and a certain degree of axial loading in either direction
High-speed capability.
The Maximum style not to be used when axial loading or high speed is involved.
Sealed and shielded types are filled with an appropriate volume of grease.
Bearings with a locating snap ring aid axial positioning and eliminate the need for housing shoulder.
Cages can be a pressed steel, machined copper alloy, molded polyamide, synthetic resin, pressed stainless sheet steel

Main Applications

Automotive: Transmissions, electrical devices, truck, and trailer equipment.
Off-Highway Vehicles: Construction equipment, agricultural equipment, railroad rolling equipment.
Electrical Equipment: Standard motors, electric appliances for domestic use
Other: Measuring instruments, medical instruments, and miscellaneous industrial equipment.
