Description

Deep Groove Ball Bearing Shielded Type (C3)

  • Shielded type (ZZ).
  • C3, clearance greater than normal clearance (CN)

About Deep Groove Ball Bearing

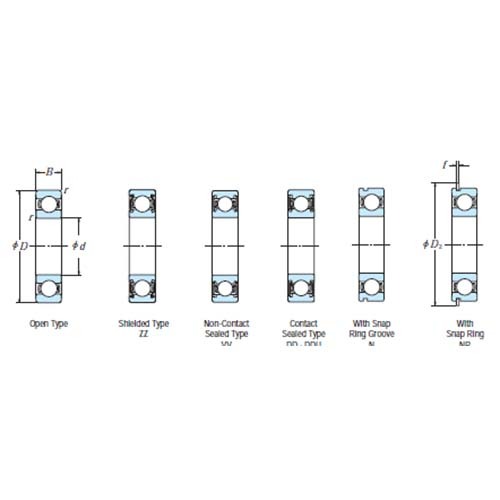

  • Single row deep groove ball bearing (open type, shielded type, sealed type); bore diameter 10 to 240mm.
  • Single row deep groove ball bearing (open type); bore diameter 260 to 800mm.

Maximum Type Ball Bearings

  • Maximum Type Ball Bearings contain a larger number of balls than normal deep groove ball bearings because of filling slots in the inner and outer rings.
  • Because of their filling slots, they are not suitable for applications with high axial loads.
  • BL2 and BL3 types of bearings have boundary dimensions equal to those of single-row deep groove ball bearings of Series 62 and 63 respectively.
  • Besides the open type, ZZ type shielded bearings are also available.
  • When using these bearings, it is important for the filling slot in the outer ring to be outside of the loaded zone as much as possible.
  • Their cages are pressed steel.

Precautions For Use Of Deep Groove Ball Bearings

  • For deep groove ball bearings, if the bearing load is too small during operation, slippage occurs between the balls and raceways, which may result in smearing.
  • The higher the weight of balls and cage, the higher this tendency becomes, especially for large bearings. If very small bearing loads are expected.

Specifications

  • AIMS SKU A0153993
  • Brand NSK
  • Model Number 6201ZZC3/NSK
  • Basic Load Rating (kgf) Cr 695
  • Outer Diameter D (mm) 32
  • Dx min. 37.5
  • ra max. 0.6
  • da(2) Max. 28
  • da(2) min. 16
  • rN Min. 0.5
  • r0 Max. 0.4
  • Limiting Speed (min-1) Oil 28000
  • Limiting Speed (min-1) Grease Open 22000
  • Factor f0 12.3
  • Basic Load Rating (kgf) C0r 310
  • Bore Diameter x Outer Diameter x Width (mm) 12 x 32 x 10
  • Basic Load Rating (N) C0r 3050
  • Basic Load Rating (N) Cr 6800
  • r min. 0.6
  • CY Max. 2.9
  • F Max. 1.12
  • D2 Max. 36.7
  • B Min. 1.35
  • A Max. 2.06
  • D1 Max. 30.15
  • Width B (mm) 10
  • Bore Diameter d (mm) 12
  • Type Deep-Groove Ball Bearings
  • Series 6000 Series
SKU: A0153993

NSK 6201ZZC3 Deep Groove Ball Bearing Shielded Type (C3) 12 x 32 x 10mm

Deep Groove Ball Bearing Shielded Type (C3)

$9.02
