*** JTEKT (Formerly Koyo Brand) ***

Deep Groove Ball Bearing with Snap Ring (C3) 60/22-63/32 Series

  • Deep groove ball bearing with snap ring (C3 Clearance).
  • 60/22-63/32 Series.

About Deep Groove Ball Bearing

  • Deep groove ball bearings are available in a variety of sizes and are the most popular of all rolling bearings.
  • This type of bearing supports radial load and a certain degree of axial load in both directions simultaneously.

Shielded/sealed type

  • Simplifies the sealing structure of applications.
  • Greasing is not necessary because bearings are pre-lubricated.

With locating snap ring

  • Bearings with a locating snap ring can be fitted to the housing easily, as the locating snap ring facilitates axial positioning.

Extra-small ball bearings and miniature ball bearings

  • The open type is widely used. Also available are the shielded/sealed type and the flanged type; the latter is easily positioned in the axial direction.

Features Deep Groove Radial Bearing

  • Type: Open Type, Shielded/ sealed type, With locating snap ring, Maximum type, and Double-row.
  • The most popular rolling bearing type used in a wide variety of industries and applications.
  • The inner and outer rings have deep uninterrupted grooves.
  • They can support radial loading and a certain degree of axial loading in either direction
  • High-speed capability.
  • The Maximum style not to be used when axial loading or high speed is involved.
  • Sealed and shielded types are filled with an appropriate volume of grease.
  • Bearings with a locating snap ring aid axial positioning and eliminate the need for housing shoulder.
  • Cages can be a pressed steel, machined copper alloy, molded polyamide, synthetic resin, pressed stainless sheet steel

Main Applications

  • Automotive: Transmissions, electrical devices, truck, and trailer equipment.
  • Off-Highway Vehicles: Construction equipment, agricultural equipment, railroad rolling equipment.
  • Electrical Equipment: Standard motors, electric appliances for domestic use
  • Other: Measuring instruments, medical instruments, and miscellaneous industrial equipment.

Specifications

  • AIMS SKU A0153260
  • Brand Koyo
  • Model Number 62/28NRC3/KOYO
  • Limiting Speed (min-1) Oil Lub. Open (Z) 14000
  • Mounting Dimension (mm) Rb Max. 0.5
  • Mounting Dimension (mm) Cy Max. 3.33
  • Mounting Dimension (mm) Dx Min. 64.5

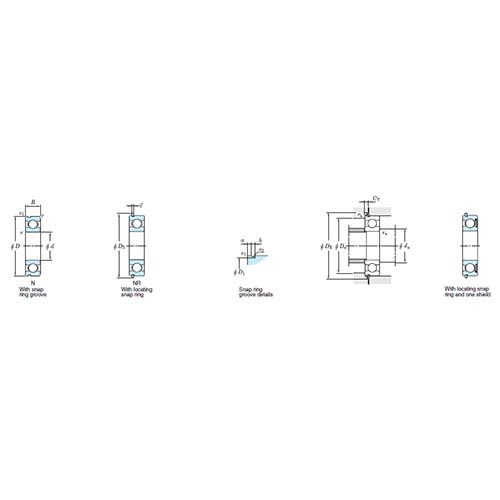

  • Dimension of locating snap ring (mm) F ±0.05 1.07
  • Dimension of locating snap ring (mm) D2 Max 63.7
  • Dimension of snap ring groove (mm) rO 0.4
  • Dimension of snap ring groove (mm) b ±0.15 1.5
  • Dimension of snap ring groove (mm) a max. 2.46
  • Dimension of snap ring groove (mm) D1 max. 55.6
  • Mounting Dimension (mm) Ra Max. 1
  • Mounting Dimension (mm) Da Max. 53
  • Mounting Dimension (mm) Da Min. 33
  • Bore Diameter x Outer Diameter x Width (mm) 28 x 58 x 16
  • Limiting Speed (min-1) Grease lub. Open (ZZ, 2RU) 12000
  • Factor F 0 13.4
  • Fatigue Load Limit (kN) Cu 0.72
  • Basic Load Rating (kN) C0r 9.75
  • Basic Load Rating (kN) Cr 22.4
  • Boundary Dimension (mm) r1 min. 0.5
  • Boundary Dimension (mm) r min. min. 1
  • Bearing Width B (mm) 16
  • Outside Diameter D (mm) 58
  • Bore Diameter d (mm) 28
  • Mass (kg) 0.173
  • Type Deep-Groove Ball Bearings
  • Series 60/22-63/32 Series
SKU: A0153260

Koyo/JTEKT 63/22NRC3 Deep Groove Ball Bearing with Snap Ring (C3) 28 x 58 x 16mm

Deep Groove Ball Bearing with Snap Ring (C3)

$41.48
