Description



Deep Groove Ball Bearings

  • Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
  • Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
  • Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

  • AIMS SKU A0106462
  • Brand NACHI
  • Model Number 6201-2NSENRC3/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 12 x 32 x 10
  • R (min) 0.6
  • Basic Dynamic Load Rating (n) 6800
  • Basic Static Load (N) 3050
  • Limiting Speed (rpm) Grease Lubrication 22000
  • Limiting Speed (rpm) Oil Lubrication 28000
  • Width (b) mm 10
  • Type Deep-Groove Ball Bearings
  • System of Measurement Metric
  • Series 6000-6300
SKU: A0106462

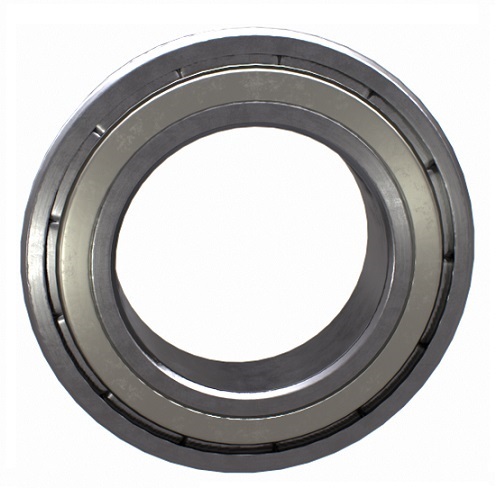

NACHI 6201-2NSENRC3 Deep-Groove Ball Bearings 6200 Series w/Snap Ring 12 x 32 x 10mm

Deep-Groove Ball Bearings 6200 Series w/Snap Ring
