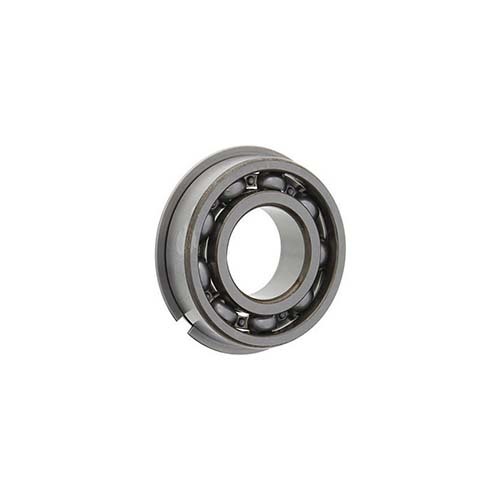

Deep Groove Ball Bearings Snap Ring and Groove (C3) - NACHI

Description

Deep Groove Ball Bearings

Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

AIMS SKU A0105199

Brand NACHI

Model Number 6205NRC3/NACHI

Bore Diameter x Outer Diameter x Width (mm) 25 x 52 x 15

R (min) 1.5

Basic Dynamic Load Rating (n) 14000

Basic Static Load (N) 7900

Limiting Speed (rpm) Grease Lubrication 13000

Limiting Speed (rpm) Oil Lubrication 16000

Abutment And Fillet Dimension Da (min) Mm 31

Abutment And Fillet Dimension Da (max) Mm 46

Abutment And Fillet Dimension Ra (max) Mm 1

Type Deep-Groove Ball Bearings
System of Measurement Metric
Series 6200-6300
