***100-AA-SS, 200-AA-SS, 300-AA-SS and 400-AA-SS are available. Other sizes are special orders, contact AIMS for assistance.***

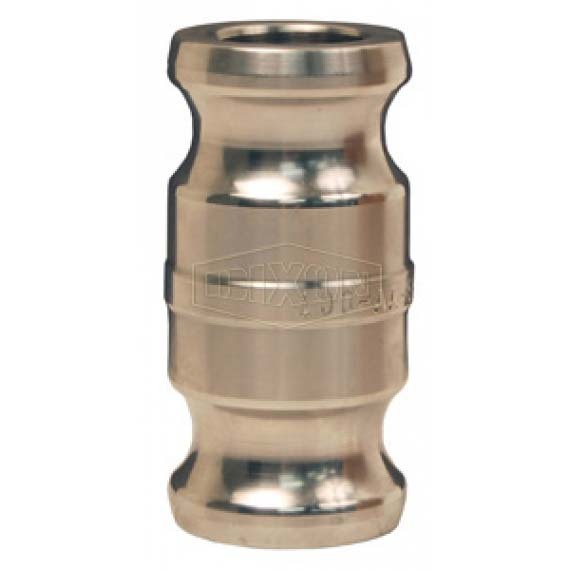

Dixon 316 Stainless Steel Cam & Groove Spool Adapter Type AA

Applications

  • Designed for use with liquids

How it works

  • To make a connection; simply slide the adapter into the coupler and with normal hand pressure; press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Safety notes

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F/21°C with a standard seal installed.

About Dixon

Dixon is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Dixon, founded in 1916.

  • Global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
  • Dixon's strategic objective is to create solutions that make products safer, leak-free, longer-lasting, and always available.

Specifications

  • AIMS SKU A0067627
  • Brand Dixon
  • Model Number 100-AA-SS
  • Size (mm) 25
  • Size (inch) 1
  • Maximum Operating Pressure (PSI) 250
  • Weight (lbs) 0.68
  • Type Spool Adapter
  • Material 316 Stainless Steel
SKU: A0067627

Dixon 25mm 316 Stainless Steel Cam & Groove Spool Adapter Type AA 100-AA-SS

Dixon Cam & Groove Spool Adapter Type AA
