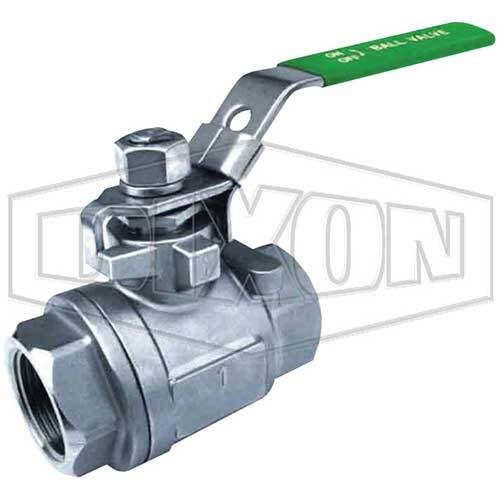

Dixon SS2P-12MM 15mm 2-Pc Ball Valve 316 SS Female x Female BSP - Full Bore

Description

Dixon 2-Piece Ball Valve 316 Stainless Steel BSP - Full Bore

It is used as a 1/4 Turn Isolation valve in pipelines
Fitted with lockable levers
Two-piece full bore
Female-Female BSP
1000 PSI CWP for water, gas and some corrosive fluids
Watermark Certified & Tested to API 598

Application

For use with air; water; oil; gas and most chemicals which are compatible with body & trim

How it works

Standard valve is manually operated with a lever to Open or Close
Quarter turn on/off and lockable In open OR shut position

Installation

Valves are screwed on to pipelines/Manifolds with matching Male BSP threads

Specifications

AIMS SKU A0132023

Brand Dixon

Model Number SS2P-12MM

Size (mm) 15

Thread Female x Female BSP - Full Bore

Size (inch) 1/2

Working Pressure (psi) Max 1000

Type Ball Valve
Material 316 Stainless Steel (ASTM A351 CF8M)
Item Type 2-Piece Ball Valve
Seat PTFE
