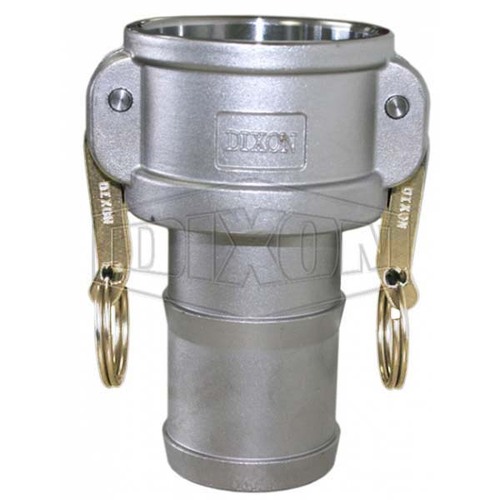

***Image may differ, this is for illustration purposes only.***
Dixon Aluminium Die Cast BSP Cam & Groove Type C Coupler x Hose Shank
Applications
- The Dixon Cam & Groove coupling is a reliable quick connect coupling for use on a hose; pipe; tubing and tanks conveying a wide variety of liquids; dry bulk materials and vapors including cooling water; fuels; chemicals; cosmetics; food products; adhesives; dyes; pharmaceuticals; pellets and much more.
Use
- Designed for use with liquids
Materials
- Conforms to ASTM B 26/B 26M Grade 356.0 - T6
- Body: Die Cast Aluminium
- Levers: Brass
- Pins: Zinc Plated Steel
- Pull Rings: Zinc Plated
How it works
- The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The two cam arms are then closed under normal hand pressure to complete the joint. Uncoupling is as quick and simple as coupling, just lift the cam arms and remove the adapter
Note
- Couplings made using the die-cast process must NOT be welded.
Safety notes
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F/21°C with a standard seal installed.
- Pressure rating is based on the seal of the mating part.
Specifications
- Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
