Description

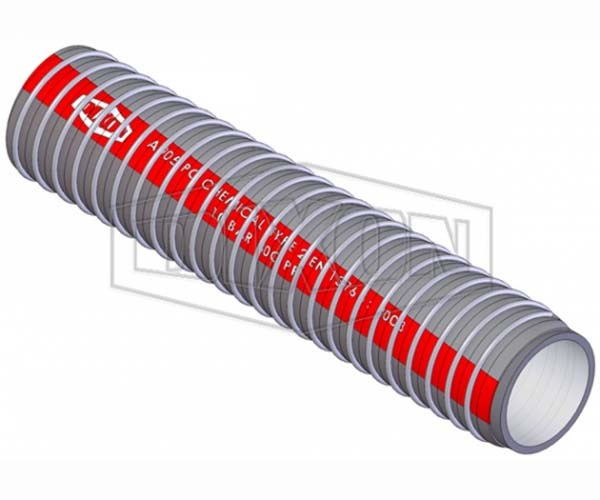

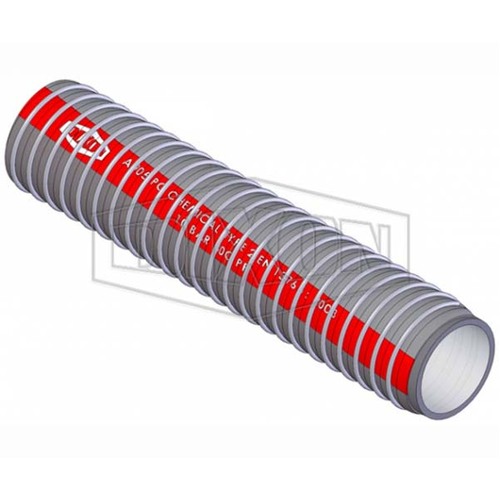

Dixon Code 951 - Composite Chemical Medium Duty Suction & Delivery Hose

Applications

This anti-static composite hose is designed for suction and discharge use on plant or road/rail tankers with a wide range of chemicals.

Construction

Tube: Poly coated steel inner wire
Hose Construction: Poly coated steel inner wire. High strength polypropylene films and fabrics, high-density polyethylene film reinforcements,polivinyl coated polyester fabric cover with outer galvanised wire. Grey with red stripe corrogated and exposed galvanised wire helix.Weather and ozone resistant.

Features

The hose construction is lightweight and flexible for ease of handling yet remains robust hard wearing and cost-effective.

Specifications

Standards - AS2594 EN13765

Branding

DIXON CHEMICAL CODE 951 MD S/D

Available Lengths

Cut Length: 5 m
Coil Lenght: 40 m

Specifications

AIMS SKU A0069289CUT

Brand Dixon

Model Number CODE951040

Hose Length 5 m

Application Chemical

Burst Pressure 750 psi

Color Grey With Red Stripe

Working Pressure (psi) 150

Temperature Range -30°C to 80°C

Weight kg/m 1

Hose ID (mm) 38

Bend Radius (mm) 100

Working Pressure (bar) 10

Burst Pressure Bar 50

Negative Pressure mmhg 662

Negative Pressure Bar 0.9

Type Composite Chemical Medium Duty Suction & Delivery Hose
