Description

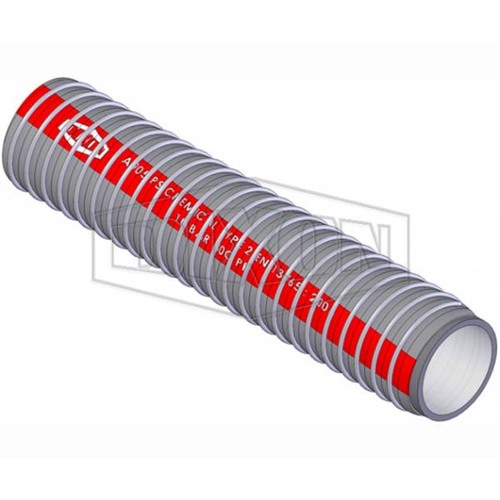

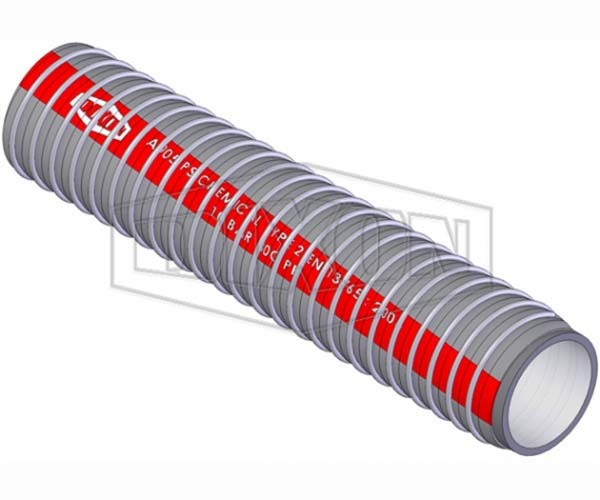

Dixon Code 952 - Composite Chemical Medium Duty Suction & Delivery Hose

Applications

This anti-static composite hose is designed for suction and discharge use on plant or road/rail tankers with a wide range of chemicals where 100% aromatic resistance is required.

Construction

Tube: Poly coated steel inner wire
Hose: High strength polypropylene films and fabrics,high density polyethylene film reinforcements. Polyvinyl coated polyester fabric cover.
Cover: Grey with red stripe, corrugated, weather and ozone resistant
Outer wire: SS304
Inner wire: Poly coated steel

Features

The hose construction is lightweight and flexible for ease of handling yet remains robust hard wearing and cost effective.

Specifications

Standard- AS2594 EN13765

Branding

DIXON CHEMICAL CODE 952 MD S/D

Available Lengths

Cut Length: 5 m
Coil Lenght: 40 m

Specifications

AIMS SKU A0069294CUT

Brand Dixon

Model Number CODE952050

Hose Length 5 m

Application Chemical

Burst Pressure 750 psi

Color Grey With Red Stripe

Working Pressure (psi) 150

Temperature Range -30°C to 80°C

Weight kg/m 1.6

Bend Radius (mm) 150

Working Pressure (bar) 10

Burst Pressure Bar 50

Hose Inside Diameter (mm) 50

Negative Pressure mmhg 662

Negative Pressure Bar 0.9

Type Composite Chemical Medium Duty Suction & Delivery Hose
