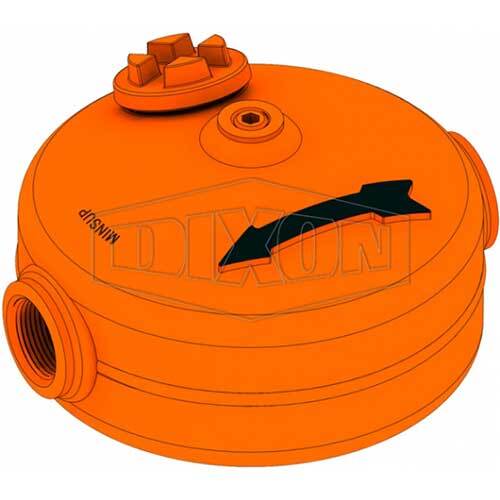

Air Operated Lubricator BSP Fixed Jet - 08/066/01/000

• Style: Fixed jet
• Thread: BSP
• Thread Size: 1""
• Maximum Operating Pressure: 300 PSI
• Capacity: 1.2 Liter Oil

Use

• The Minsup oil bottle was developed to ensure continuous and adequate lubrication of rock drills over the length of a normal shift.
• Why 1.2 Litres? This is the calculated oil usage for one 8 hour shift when set correctly.
• 1mm diameter jet designed for use with rock drill lubricating oil.
• For correct lubrication the oil bottle should not be placed in excess of three meters from the machine ensuring that the oil reaches the machine in mist form.

Features

• The 1-1/4"" filler plug has a built in pressure release behind the sealing O-ring to allow pressure to escape in a controlled manner in the case of unintentional opening while under pressure.

Construction
