***Special Order on NGD100A, NGD200A, and NGD300A. Contact AIMS for lead time.***

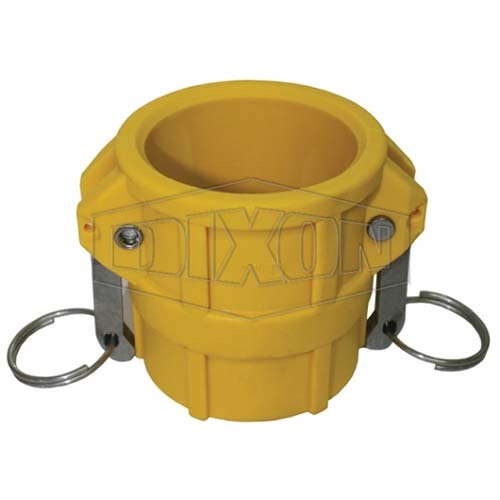

Dixon Nyglass Cam & Groove Type D Coupler x Female BSP
Applications
- The Dixon Cam & Groove coupling is a reliable quick connect coupling for use on a hose; pipe; tubing and tanks conveying a wide variety of liquids; dry bulk materials and vapors including cooling water; fuels; chemicals; cosmetics; food products; adhesives; dyes; pharmaceuticals; pellets and much more.
Use
- Designed for use with liquids
Construction
- Nyglass 30% glass filled body with stainless steel levers and pins
How it works
- The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The two cam arms are then closed under normal hand pressure to complete the joint.
Note
- The coupler portion of the 15mm size uses the 20mm standard body size.
Safety notes
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F/21°C with a standard seal installed.
- Nyglass cam & groove should not be mixed with aluminum fittings.
About Dixon
Dixon is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Dixon, founded in 1916.
- Global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
- Dixon's strategic objective is to create solutions that make products safer, leak-free, longer-lasting, and always available.
