Description

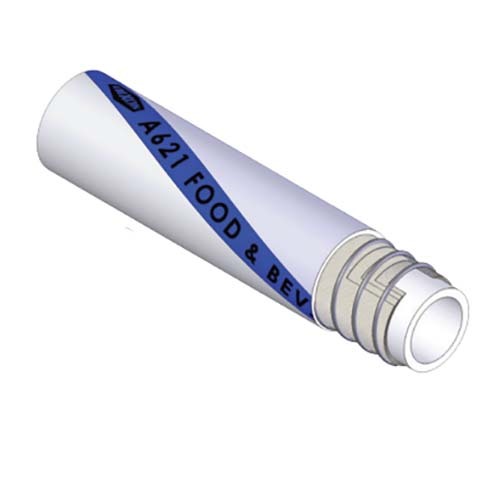

Dixon Rubber Food, Milk & Beverage Suction & Delivery Hose

Applications

  • Special food suction and discharge hose, particularly suitable for transferring milk, wine, beer and potable water either in-plant or tank truck service.
  • Up to 96% alcohol

Construction

  • Tube: White, smooth food quality rubber. In accordance with FDA and 3A sanitary standards, NBR / EPDM blend.
  • Cover: Blue/White, smooth (wrapped finish) synthetic rubber, abrasion and ozone resistant. CR - Neoprene
  • Reinforcement: High strength synthetic cord plus helix wire

Specifications

  • FDA compliant and conforms to 3A sanitary standard 18-03

Available Lengths

  • Cut Length: 5 m
  • Coil Lenght: 20 m

Specifications

  • AIMS SKU A0068552CUT
  • Brand Dixon
  • Model Number A621080
  • Hose Length 5 m
  • Application Food & Alcohol
  • Burst Pressure 450 psi
  • Color White
  • Working Pressure (psi) 150
  • Temperature Range For oily products -40°C to 120°C. For non-oily products -30°C to 100°C
  • Working Pressure (mpa) 1
  • Weight kg/m 2.89
  • Bend Radius (mm) 300
  • Hose Outside Diameter (mm) 90
  • Hose Inside Diameter (mm) 76
  • Vacuum Rating M/h20 9
  • Type Food, Milk & Beverage Suction & Delivery Hose
  • Material NBR/EPDM Blend
SKU: A0068552CUT On Sale

Dixon 76mm x 5m Rubber Food, Milk & Beverage Suction & Delivery Hose White A621080

Dixon Rubber Food, Milk & Beverage S & D Hose

$637.29
$796.61
