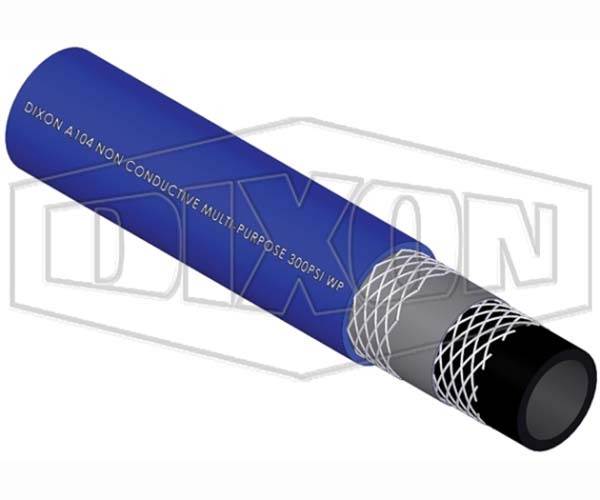

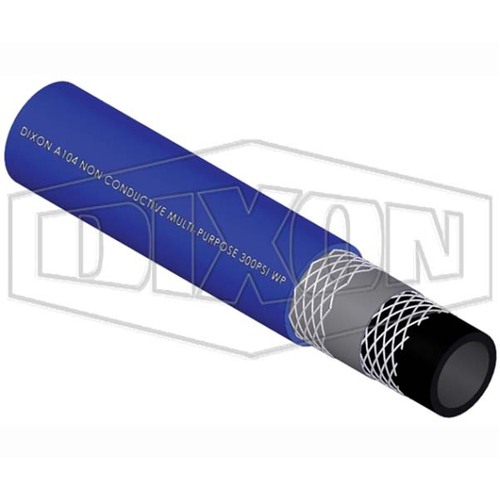

Dixon Rubber Multi-Purpose Non-Conductive Hose

Applications

  • Multi-Purpose hose used in steel mills, shipyards, foundries, auto plants and construction industries.
  • For conveying a wide range of media including air, water, oil and other petroleum products

Features

  • Red, Yellow, and Blue covers allow for colour coding where cross contamination of media can affect the safe operation of plant equipment.
  • UV Stabilised
  • Oil Mist Resistant
  • Non-Conductive

Construction

  • Tube: NBR
  • Reinforcing: Polyester Braid
  • Cover: NBR

Available Lengths

  • Cut Lengt: 5 m
  • Coil Length: 20 m
  • Reel Length:
    • 100 and 200 m (2 x 100 m per reel)
    • 30 and 60 m (2 x 30 m per reel)

***Note:

  • For the 200 m, there are 2 pieces of 100m tied together by string to allow spooling onto the reel. Continuous length of 200m is not available.
  • For the 60m, there are 2 pieces of 30m tied together by string to allow spooling onto the reel. Continuous length of 60m is not available.

Specifications

  • AIMS SKU A0174454CUT
  • Brand Dixon
  • Model Number A104010BL
  • Colour Blue
  • Hose Length 5 m
  • Application Water, Air & Chemical
  • Burst Pressure 1200 psi
  • Working Pressure (psi) 300
  • Temperature Range -20°C to 100°C
  • Working Pressure (mpa) 2.1
  • Weight kg/m 0.27
  • Hose ID (mm) 10
  • Bend Radius (mm) 60
  • Hose Outside Diameter (mm) 18.2
  • Type Multi-Purpose Non-Conductive Hose
  • Material NBR
SKU: A0174454CUT On Sale

Dixon 10mm x 5m Rubber Multi-Purpose Non-Conductive Hose Blue A104010BL

Dixon Rubber Multi-Purpose Non-Conductive Hose

$32.44
$40.55
