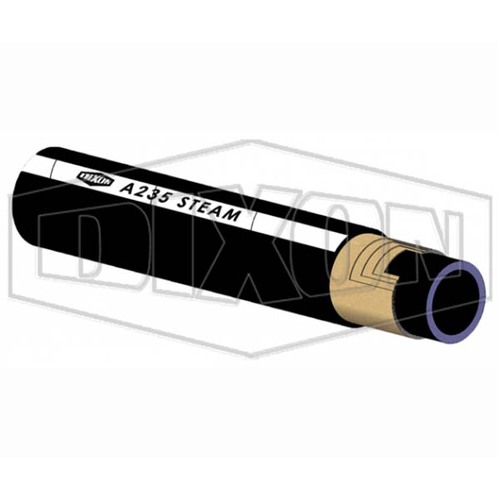

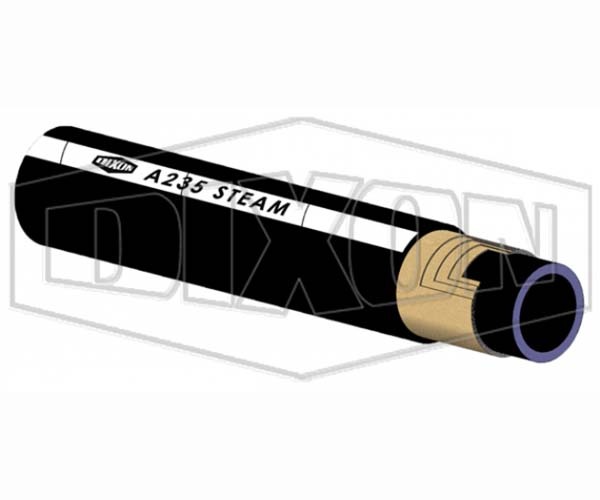

Dixon Rubber Steam Hose Fabric Reinforced

Description

Dixon Rubber Steam Hose Fabric Reinforced

Applications

Textile reinforced Mandrel built. Recommended for saturated steam and hot water washdown.

Features

Ozone resistance

Construction

Tube: White smooth EPDM rubber compound (in accordance with BGVV XX I Category 2)
Cover: White smooth (wrapped finish) EPDM rubber compound, fatty food and weathering resistant
Reinforcement: High strength synthetic cord

Safety Notes

Pressurised steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! Never use an unapproved item for steam service. Always follow the manufacturers product recommendations for pressurised steam handling.
Bend radius figure is calculated as theoretical

Available Lengths

Cut Length: 10 m
Coil Lenght: 20, 60 and 120 m

Specifications

AIMS SKU A0068451CUT

Brand Dixon

Model Number A235012B

Colour Black

Hose Length 10 m

Application Hot Water & Steam

Temperature Range -30°C to 160°C (steam), -35°C to 95°C (hot wash)

Weight kg/m 0.4

Hose ID (mm) 12

Bend Radius (mm) 1561

Hose Outside Diameter (mm) 24

Working Pressure Steam (psi) 87

Working Pressure Steam (mpa) 0.6

Burst Pressure Steam 870 psi

Working Pressure Hot Water (psi) 150

Type Steam Hose Fabric Reinforced
Material EPDM Rubber
