Description

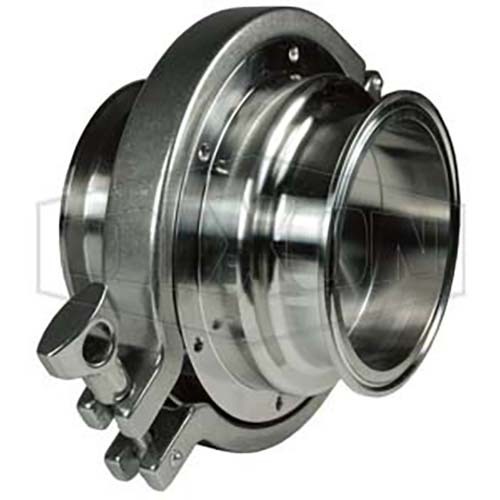

Dixon Spring Check Valve 316L Stainless Steel Clamp Connection

Applications

  • Suitable for low and medium viscosity fluids

Specifications

  • 3A authorized 58-00

Features

  • Full size flow plate
  • Long stem bushing for increased cycle life
  • Field serviceable (no special tools required)




Available Options

  • Various end connections available

Specifications

  • AIMS SKU A0156460
  • Brand Dixon
  • Model Number B46MP-R400
  • Size (inch) 4"
  • Weight (lb) 9.53 lb
  • Seat FKM
  • Seal EPDM
  • Maximum Operating Pressure (PSI) 145
  • Temperature Range (°F) 15 to 200
  • Type Check Valve
  • Material 316L Stainless Steel
  • Style Clamp Connection
SKU: A0156460

Dixon 4" Check Valve 316L Stainless Steel Steel Spring Clamp Connection B46MP-R400

Dixon Spring Check Valve Clamp Connection

$1,180.36
