Description

Angular Contact Ball Bearings

  • Single row extra light, light & medium series bearings for combined radial and one directional axial load.
  • Angular contact ball bearings can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle.
  • The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.

Specifications

  • AIMS SKU A0106678
  • Brand NACHI
  • Model Number 5200-ZZ/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 10 x 30 x 14.3mm
  • R (min) 0.6
  • Basic Dynamic Load Rating (n) 7300
  • Basic Static Load (N) 4000
  • Limiting Speed (rpm) Grease Lubrication 18000
  • Limiting Speed (rpm) Oil Lubrication 24000
  • Width (b) mm 14.3
  • Type Angular Contact Ball Bearings
  • System of Measurement Metric
  • Series No. 5200 - 5300
SKU: A0106678

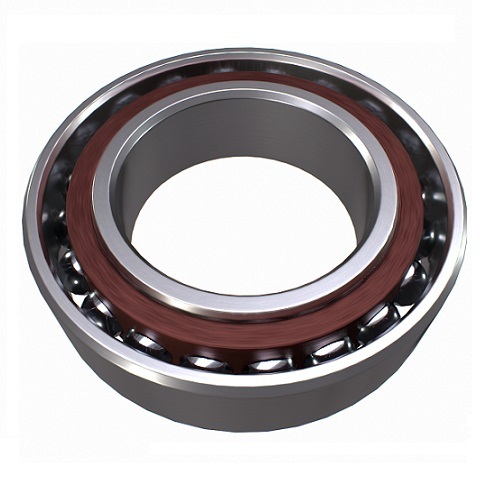

NACHI 5200-ZZ Angular Contact Ball Bearings 5200-5300 2Z Series 10x 30x 14.3mm

Angular Contact Ball Bearings 5200-5300 2Z Series

$39.86
