E401 Endmill Sutton - Sutton Tools

Description

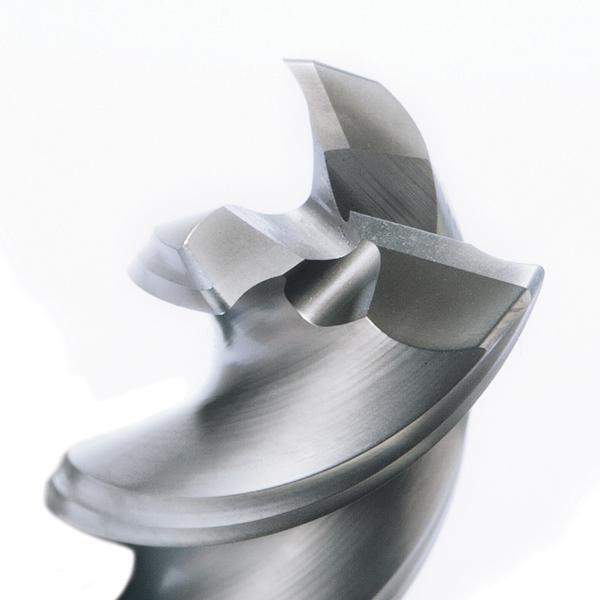

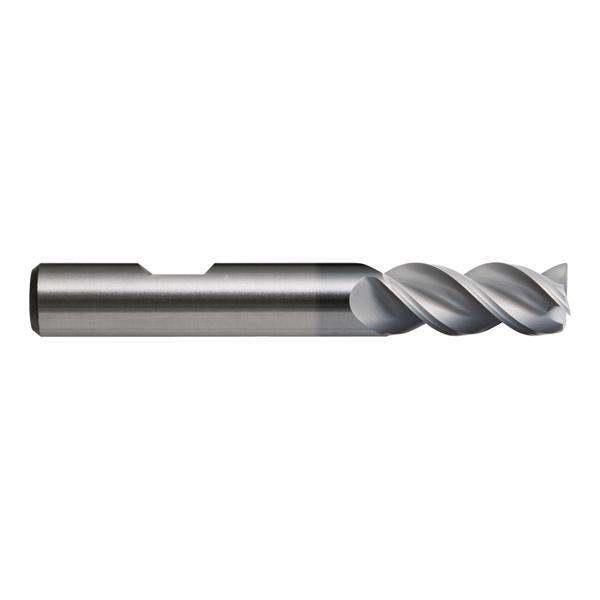

3 Flute Endmill - R45/46/44 Al - Regular - Harmony

Optimized geometry for soft materials
CrN for copper and non-ferrous materials

Features

VHM-ULTRA grade of carbide for high performance
45/46/44° variable flute helix for chatter free milling

Specifications

Designation: Al
Material: VHM-ULTRA
Finish: CrN
Shank Form: HH
Helix Angle: R45/46/44
Point Tolerance: e8
Shank Tolerance: h5
Point Form: 45° Corner Chamfer
Standard: DIN6527L

Applications

Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
Optimal Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable – 130 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) - 90 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) – 100 HB

Specifications

AIMS SKU A0130294

Brand Sutton Tools

Model Number E4010800

Barcode Number 9311963582481

System of Measurement DIN6527L

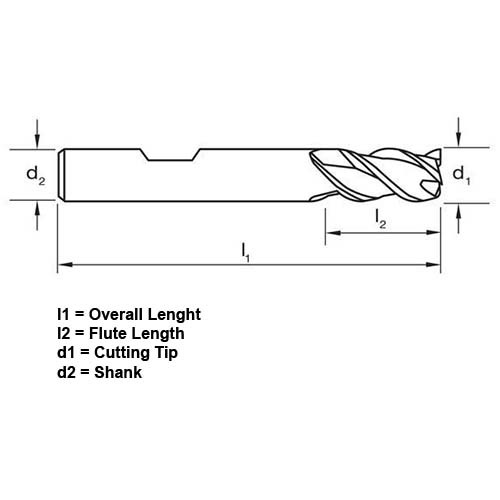

Cutting Tip (mm) 8

Overall Length (mm) 63

Shank (mm) 8

Flute Length (mm) 19

Helix Angle R45/46/44

Shank Form HB

Point Form 45° Corner Chamfer

Shank Tolerance h5

Point Tolerance e8

Item Type N (finishing)

Rake Angle 15

Type Endmill Harmony
Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
Finish Chromium Nitride (CrN)
Flutes 3
Group Code E401
