E403 Endmill Sutton - Sutton Tools

Description

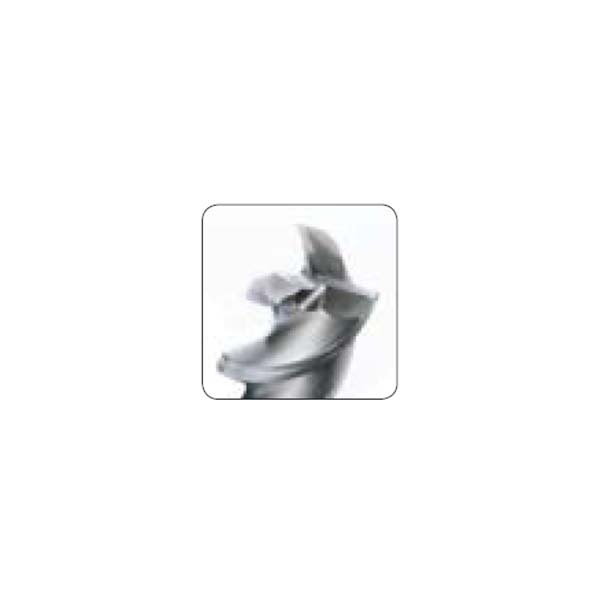

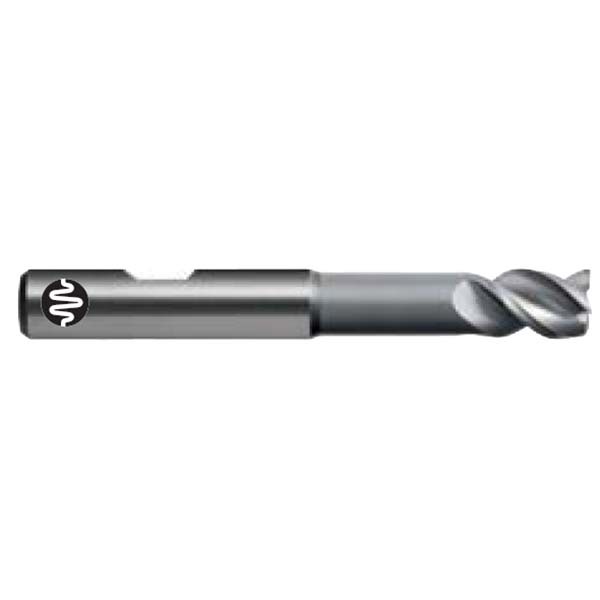

3 Flute Endmill - R45/46/44 Al - Long - Harmony

Optimized geometry for soft materials
CrN for copper and non-ferrous materials

Features

VHM-ULTRA grade of carbide for high performance
45/46/44° variable flute helix for chatter-free milling

Specifications

CatalogueCode: E403
Product Group: B0210
Material: VHM-ULTRA
Surface Finish: CrN
Sutton Designation: Al
Geometry: R45/46/44S
hankForm(DIN 6535): HB
ShankTolerance: h5

Applications

Optimal for Aluminum & Magnesium, wrought alloy - Non-Heat Treatable – 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
Optimal Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable – 130 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) - 90 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) – 100 HB

Specifications

AIMS SKU A0130154

Brand Sutton Tools

Model Number E4031200

Barcode Number 9311963553108

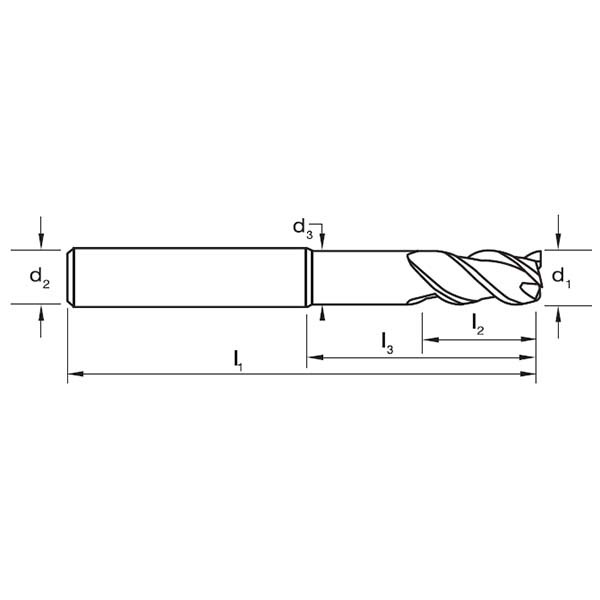

Cutting Tip (mm) 12

Overall Length (mm) 93

Shank (mm) 12

Flute Length (mm) 14

Shank Form HB

Shank Tolerance h5

D3 (mm) 11

Point Tolerance k10

Rad 0.4

Product Group B0210

Sutton Designation Al

Geometry R45/46/44

Reach Length L3 (mm) 46

Type Endmill Harmony
Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
Finish Chromium Nitride (CrN)
Flutes 3
Group Code E403
