E409 Endmill Sutton - Sutton Tools

Description

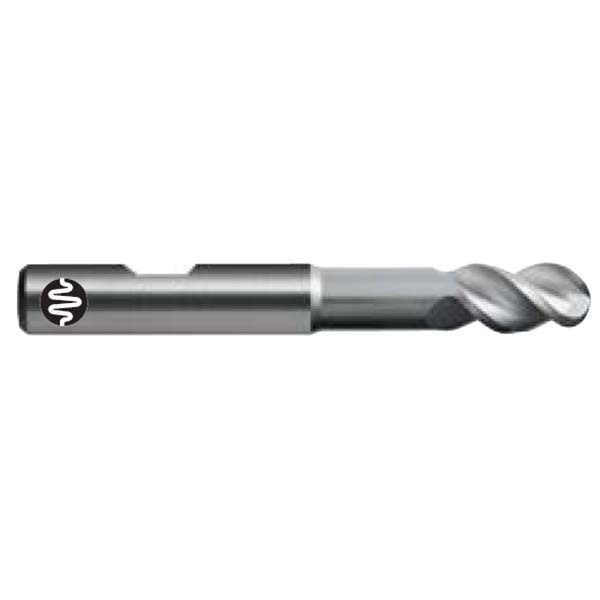

3 Flute Ballnose Endmill - R45/46/44 Al - Long - Harmony

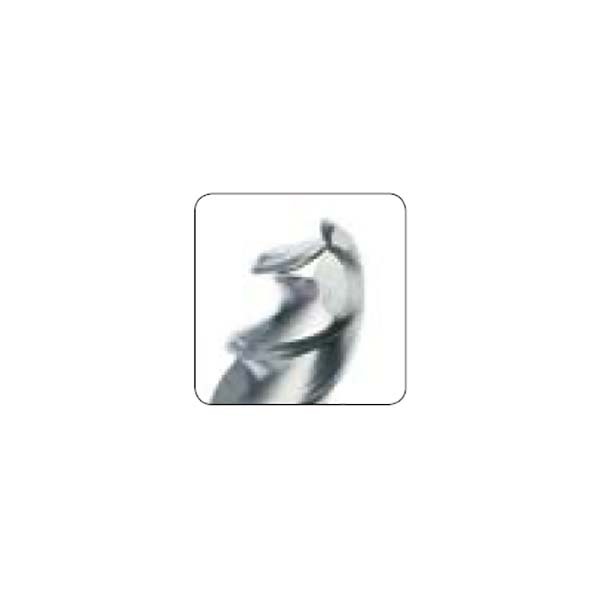

Optimized geometry for soft materials
CrN for copper and non-ferrous materials

Features

VHM-ULTRA grade of carbide for high performance
45/46/44° variable flute helix for chatter-free milling

Specifications

Code: E409
Product Group: B0210
Material: VHM-ULTRA
Surface Finish: CrN
Sutton Designation: Al
Geometry: R45/46/44
Shank Form (DIN 6535): HB
Shank Tolerance: h5

Applications

Optimal for Aluminum & Magnesium, wrought alloy - Non-Heat Treatable-60HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable-100HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non-Heat Treatabl-75HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable-90HB
Optimal for Aluminum & Magnesium, cast alloy >12% Si - Non-Heat Treatabl-130HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1-110HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)-90HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)-100HB

Specifications

AIMS SKU A0130160

Brand Sutton Tools

Model Number E4090600

Barcode Number 9311963553559

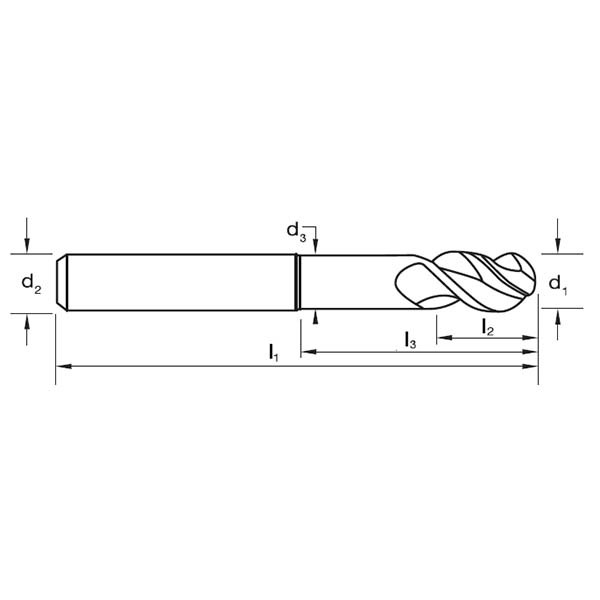

Cutting Tip (mm) 6

Overall Length (mm) 62

Shank (mm) 6

Flute Length (mm) 9

Shank Form HB

Shank Tolerance h5

Point Tolerance e8

Product Group B0210

Sutton Designation Al

Geometry R45/46/44

Reach Length L3 (mm) 24

Type Endmill Harmony
Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
Finish Chromium Nitride (CrN)
Flutes 3
Group Code E409
