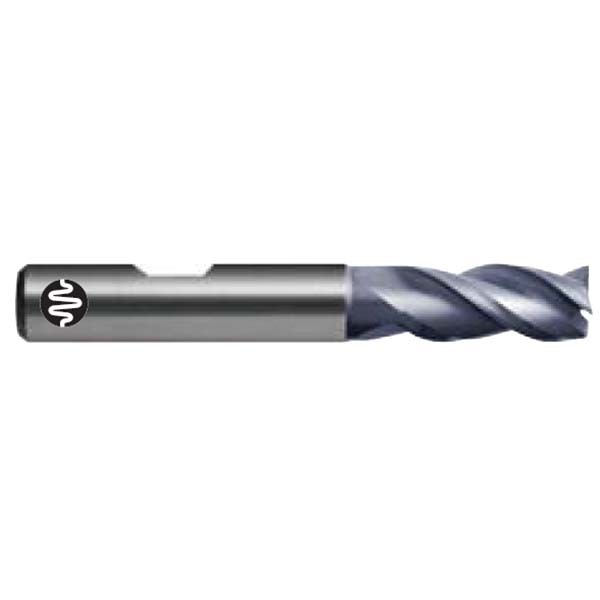

E425 Endmill Sutton - Sutton Tools

Description

3 Flute Endmill - R38/37/39 UNI - Long - Harmony

Universal use for slotting & finishing with the one tool

Features

Endmill, 3 Flute, R38/37/39 UNI, Long, Harmony for high performance
38/37/39° variable flute helix for chatter-free milling
Suitable for materials up to 1600 N/mm2
AlCrN for longer tool life

Specifications

Code: E425
Product Group: B0210
Material: VHM-ULTRA
Surface Finish: AlCrN
Sutton Designation: UNI
Geometry: R38/37/39
Shank Form (DIN 6535): HB
Shank Tolerance: h5

Applications (Optimal Use)

Steel
- Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB; (~ 0.45 %C)- 190 HB; (~ 0.45 %C)- 250 HB; (~ 0.75 %C)- 270 HB; (~ 0.75 %C)- 300 HB
Steel - Low alloy & cast < 5% of alloying elements
- 180 HB; 275 HB; 300 HB; 350 HB
Steel - High alloy, cast & tool- 200 HB; 325 HB
Cast Iron, Grey
- Ferritic / Pearlitic- 180 HB
- Pearlitic- 260 HB
Cast Iron, Nodular
- Ferritic- 160 HB
- Pearlitic- 250 HB
Cast Iron, Malleable
- Ferritic- 130 HB
- Pearlitic- 230 HB
Titanium & Titanium alloys –
- CP Titanium
- Alpha alloys
- Alpha / Beta alloys
- Beta alloys
Hardened Steel – 45 HRC; 55 HRC; 58 HRC
Cast Iron – Chilled – 400 HB; 55 HRC

Specifications

AIMS SKU A0130191

Brand Sutton Tools

Model Number E4251000

Barcode Number 9311963559599

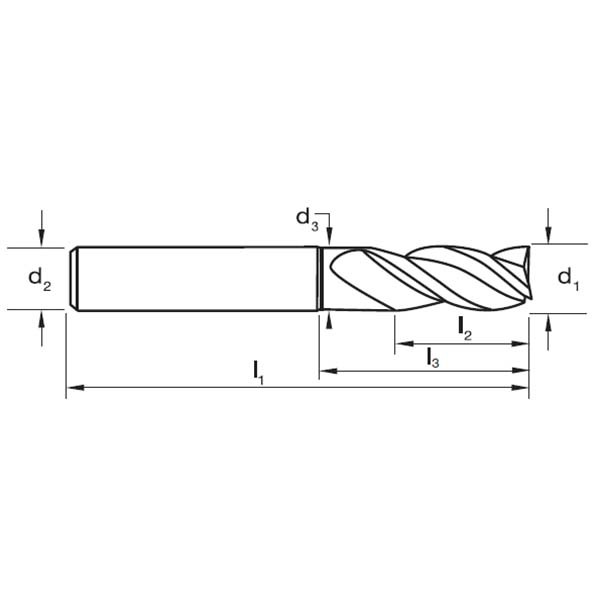

System of Measurement DIN6527L

Cutting Tip (mm) 10

Overall Length (mm) 72

Shank (mm) 10

Flute Length (mm) 22

Shank Form HB

Shank Tolerance h5

D3 (mm) 9.5

Point Tolerance e8

Product Group B0210

Sutton Designation UNI

Geometry R38/37/39

Reach Length L3 (mm) 30

Type Endmill Harmony
Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
Finish Aluminium Chromium Nitride (AlCrN)
Flutes 3
Group Code E425
