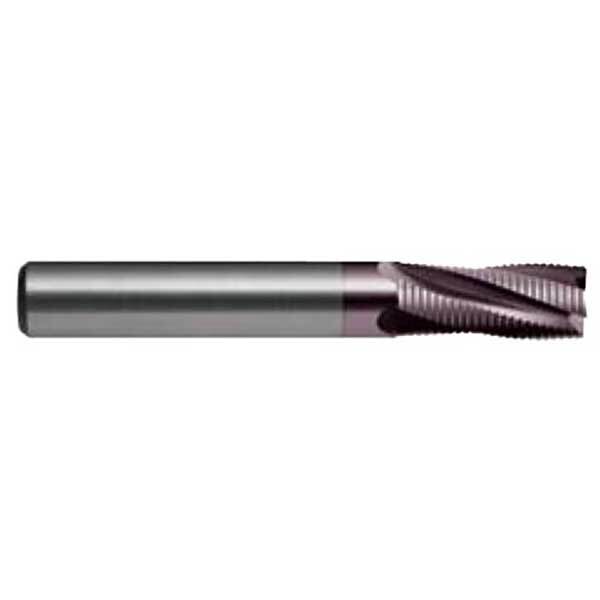

Rougher Carbide - HR (fine) - R20 WN

• For roughing applications.

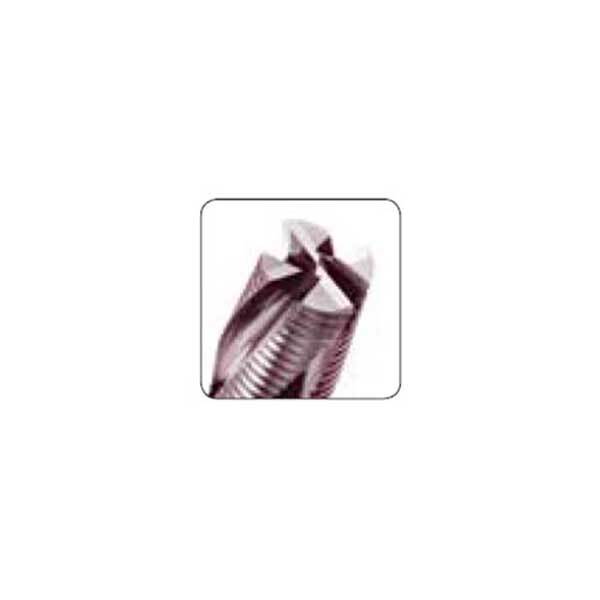

• HR geometry allows for heavier cuts in harder materials.
• Suitable for materials up to 1200 N/mm2.
• TiAlN for longer tool life.

Specifications

• Material: VHM
• Surface Finish: TiAlN
• Sutton Designation: WN

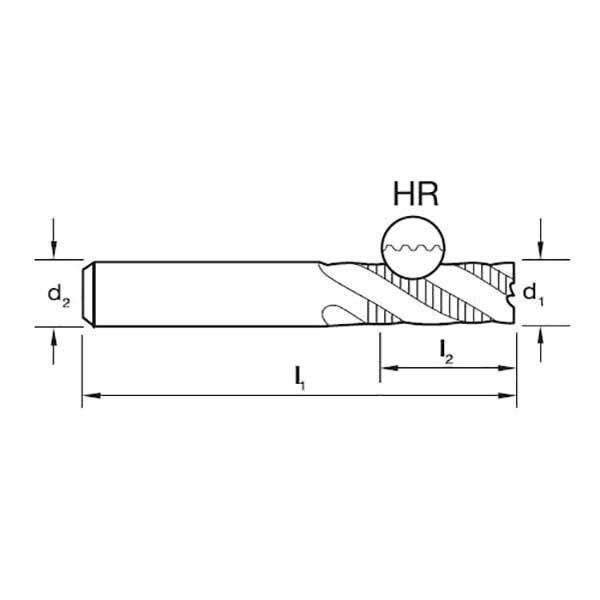

• Geometry: R20 HR
• Shank Form (DIN 6535): HA
• Shank Tolerance: h6

Applications

• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)-125HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-190HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-250HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-270HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-300HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements-180HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements-275HB
• Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic-180HB
• Optimal for Cast Iron, Grey (GG) - Pearlitic-260HB
• Optimal for Cast Iron, Nodular (GGG) - Ferritic-160HB
• Optimal for Cast Iron, Nodular (GGG) - Pearlitic-250HB
• Optimal for Cast Iron, Malleable - Ferritic-130HB
• Optimal for Cast Iron, Malleable - Pearlitic-230HB
