Description

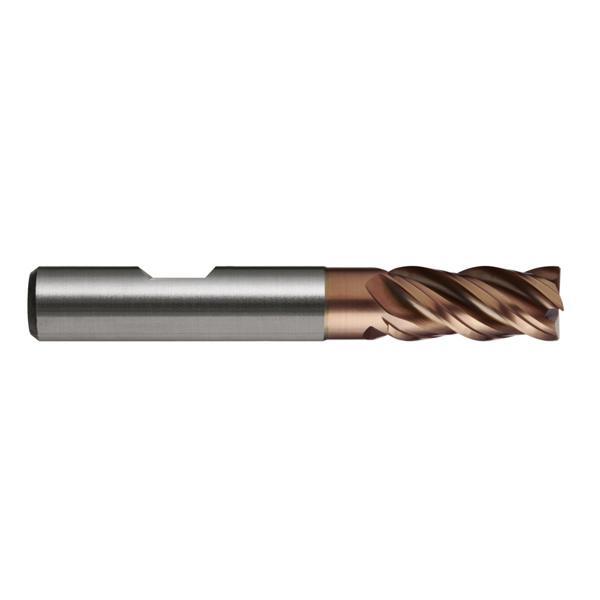

4 Flute Endmill - R40/42 VA - Regular - Harmony

Suitable for slotting, side cutting and finishing applications with the one tool
Optimized geometry with variable helix design ensures high productivity
Excellent solution for stainless steels & difficult super alloy type materials

Features

VHM-ULTRA grade of carbide for high performance
HELICA for outstanding oxidation resistance and hot hardness

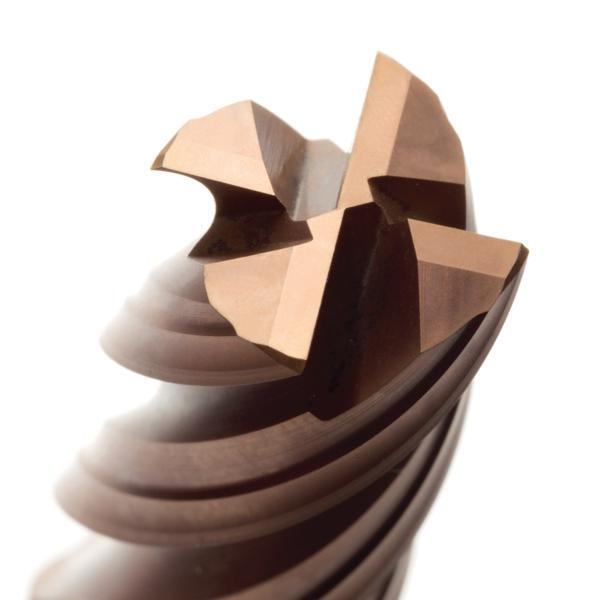

The end-teeth geometry has high relief & chip space to enable an efficient process, without the need to drill a hole

Specifications

Applications

Specifications

AIMS SKU A0130303

Brand Sutton Tools

Model Number E4600400

Barcode Number 9311963582993

System of Measurement DIN6527L

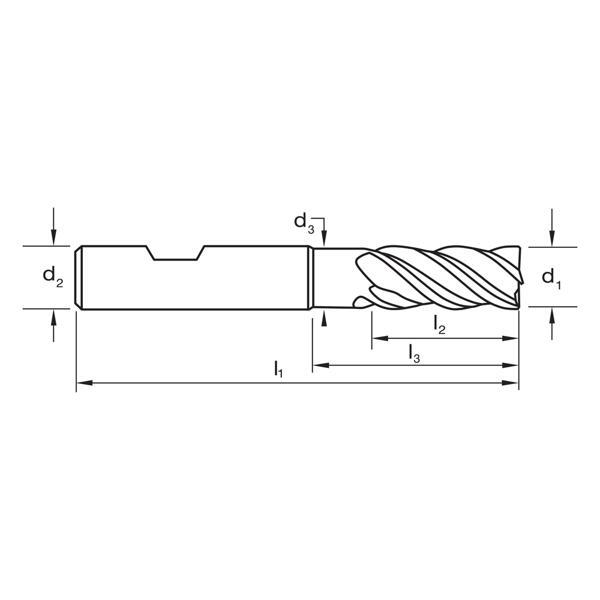

Cutting Tip (mm) 4

Overall Length (mm) 57

Shank (mm) 6

Flute Length (mm) 11

Helix Angle R40/42

Shank Form HB

Point Form 45° Corner Chamfer

Shank Tolerance h6

D3 (mm) 3.8

Point Tolerance e8

Item Type N (finishing)

Rake Angle 12

Reach Length L3 (mm) 16
