Sutton E472 2 Flute Endmill Carbide Xceed Harmony HA - Sutton Tools

Description

5 Flute Endmills - R40/42 Ni - Harmony

Excellent solution for stainless steel and super alloy type materials.
Optimized geometry with variable helix design ensures high productivity.
Suitable for slotting, side cutting and finishing applications with one tool.
XCeed for outstanding oxidation resistance and hot hardness.
VHM-ULTRA grade of carbide for high performance.

Specifications

Designation: Ni
Material: VHM-ULTRA
Finish: XCeed
Shank Form: HA
Helix Angle: R40/42
Point Tolerance: e8
Shank Tolerance: h6
Point Form: 45° Corner Chamfer
Type: N (finishing)
Standard: DIN6527L

Applications

Optimal for Stainless Steel - Austenitic-180HB
Optimal for Stainless Steel - Duplex-250HB
Optimal for Stainless Steel - Precipitation Hardening-250HB
Optimal for High-temperature alloys - Fe based-200HB
Optimal for High-temperature alloys - Fe based-280HB
Optimal for High-temperature alloys - Ni / Co-based-250HB
Optimal for High-temperature alloys - Ni / Co-based-350HB
Optimal for High-temperature alloys - Ni / Co-based-320HB

Specifications

AIMS SKU A0129865

Brand Sutton Tools

Model Number E4720600

System of Measurement DIN6527L

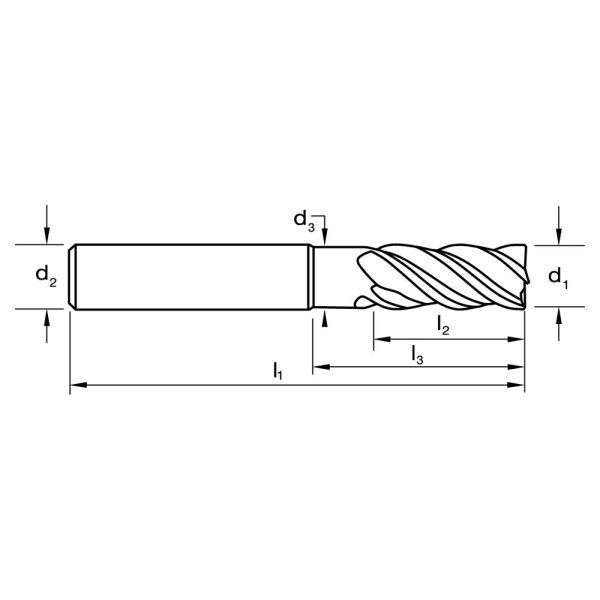

Cutting Tip (mm) 6

Overall Length (mm) 57

Shank (mm) 6

Flute Length (mm) 13

Helix Angle R40/42

Shank Form HA

Point Form 45° Corner Chamfer

Shank Tolerance h6

D3 (mm) 5.7

Point Tolerance e8

L3 Reach Length (mm) 21

Sutton Designation Ni

Type Endmill Harmony
Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
Finish Xceed
Flutes 5
Item Type N (finishing)
Group Code E472
