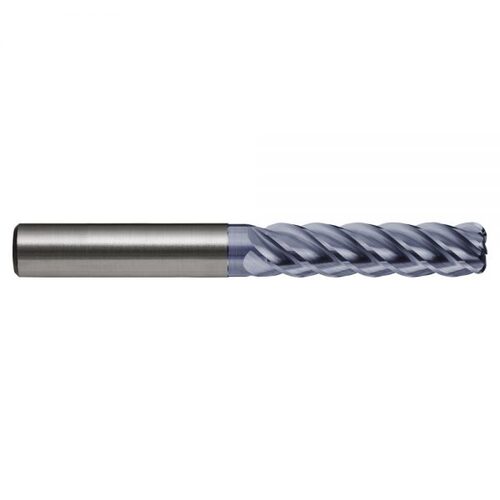

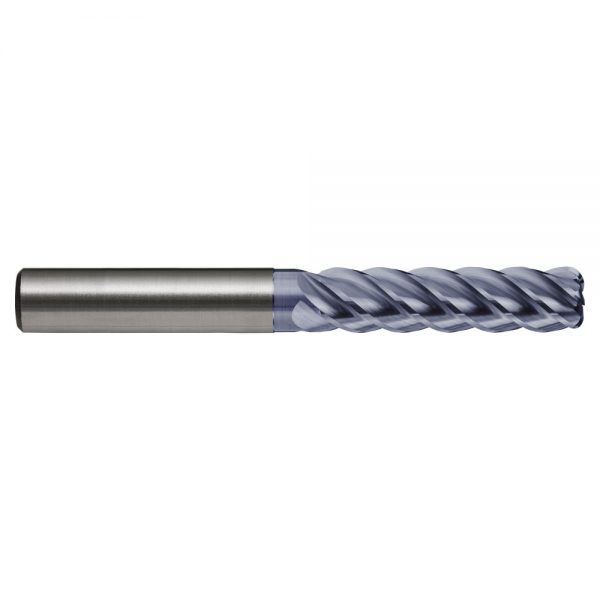

Sutton E477 5 Flute Corner Radius Endmill VHM AlNova 4XL - Sutton Tools

Description

5 Flute Endmills - R40/42 Ti - 4 Extra Long - Harmony

Optimized design for Trochoidal and HSM milling strategies in Titanium Alloys.
For the extra deep pocket, milling is typically thin-wall components.
Variable helix design to suppress vibration.
AlNova for outstanding oxidation resistance and hot hardness.

Specifications

Designation: Ti
Material: VHM-ULTRA
Finish: AlNova
Shank Form: HA
Helix Angle: R40/42
Point Tolerance: e8
Shank Tolerance: h6
Point Form: Corner Radius
Type: N (finishing)
Standard: DIN6527L
Rake Angle: 2

Applications

Optimal for Titanium & Titanium alloys - CP Titanium
Optimal for Titanium & Titanium alloys - Alpha alloys
Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
Optimal for Titanium & Titanium alloys - Beta alloys
Optimal for Titanium & Titanium alloys - Beta alloys

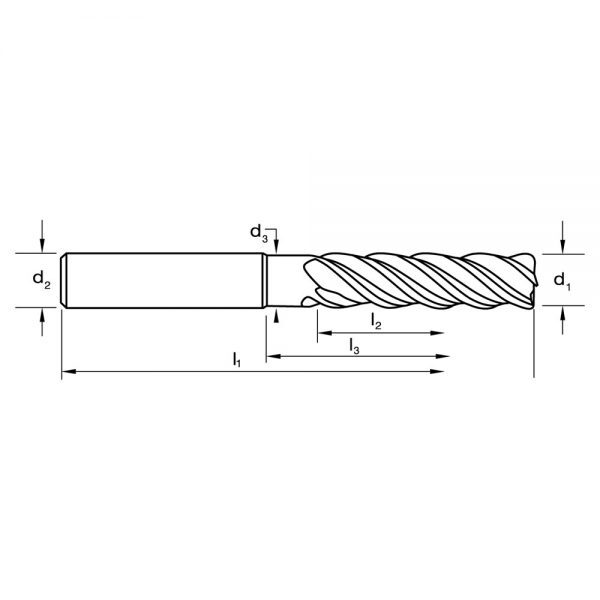

Specifications

AIMS SKU A0129900

Brand Sutton Tools

Model Number E4771210

System of Measurement DIN6527L

Cutting Tip (mm) 12

Overall Length (mm) 110

Shank (mm) 12

Flute Length (mm) 50

Shank Form HA

Shank Tolerance h6

D3 (mm) 11.5

Rad 1

L3 Reach Length (mm) 65

Product Group B0210

Sutton Designation Ti-4XL

Geometry R40/42

Type Endmills Extra Long
Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
Finish AlNova
Flutes 5
Group Code E477
