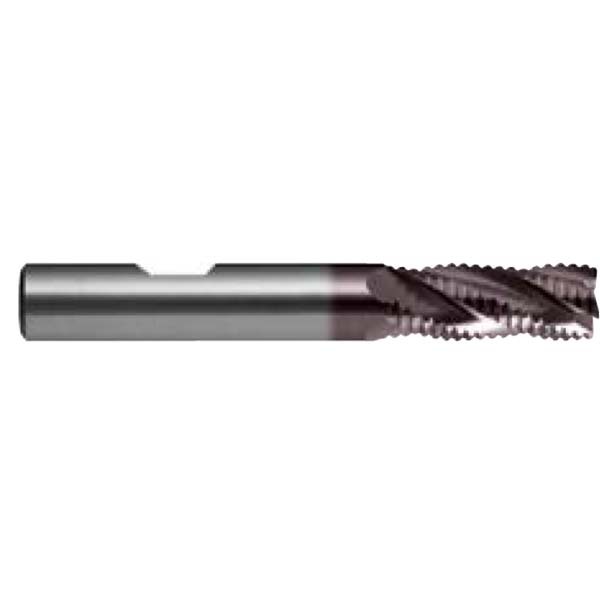

E548 Endmill Sutton - Sutton Tools

Description

Roughers Carbide - NR (normal) - R30 N - Long

For roughing applications.

Features

NR geometry allows for heavy cuts.
Suitable for materials up to 1600 N/mm2.
TiAlN for longer tool life.

Specifications

Catalogue Code: E548
Product Group: B0210
Material: VHM
Surface Finish: TiAlN
Sutton Designation: N
Geometry: R30 NR
Shank Form (DIN 6535): HB
Shank Tolerance:h6

Applications

Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable-60HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable-100HB

Specifications

AIMS SKU A0130288

Brand Sutton Tools

Model Number E5480800

Barcode Number 9311963504780

System of Measurement DIN6527L

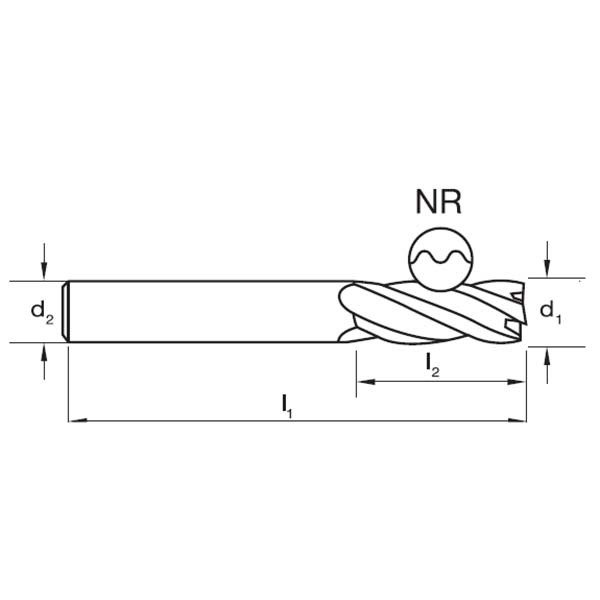

Cutting Tip (mm) 8

Overall Length (mm) 63

Shank (mm) 8

Flute Length (mm) 19

Shank Form HB

Shank Tolerance h6

Point Tolerance js14

Product Group B0210

Sutton Designation N

Geometry R30 NR

Type Rougher Endmill
Material Sub-micron grade ofsolid carbide (ISO K40)
Finish TiAlN
Flutes 3
Group Code E548
