Description

4 Flute Ballnose Endmill - R30 N - Long Reach

  • For profile & contour milling in long-reach applications

Features

  • VHM-ULTRA grade of carbide for high performance.
  • For profile & contour milling in long-reach applications.
  • Suitable for materials up to 1600 N/mm2.
  • AlCrN for longer tool life.

Specifications

  • Material: VHM-ULTRA
  • Finish: AlCrN
  • Shank Form: HB
  • Helix Angle: R30
  • Shank Tolerance: h6

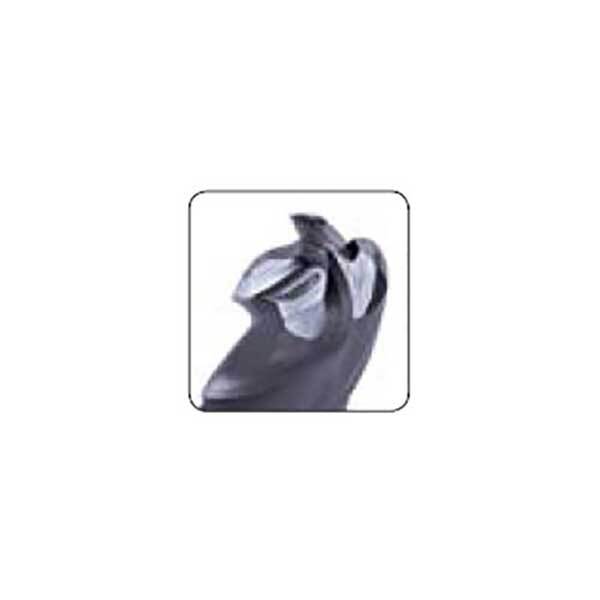

  • Point Form: Ballnose

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic- 200 HB
  • Optimal for Steel - Corrosion resistant & cast – Martensitic- 240 HB
  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
  • Optimal for Cast Iron, Nodular (GGG) - Pearlitic- 250 HB
  • Optimal for Cast Iron, Malleable – Ferritic- 130 HB
  • Optimal for Cast Iron, Malleable – Pearlitic- 230 HB

Specifications

  • AIMS SKU A0129417
  • Brand Sutton Tools
  • Model Number E5580200

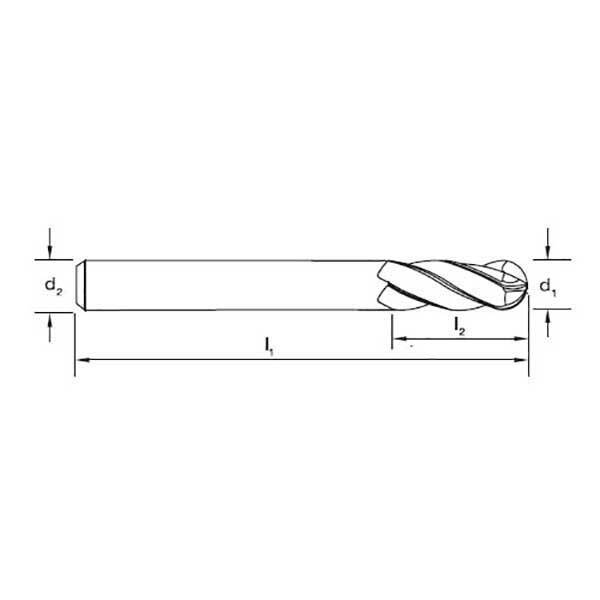

  • Cutting Tip (mm) 2
  • Profile Ball Nose
  • Overall Length (mm) 50
  • Shank (mm) 6
  • Flute Length (mm) 5
  • Reach Long Reach
  • Shank Form HB
  • Shank Tolerance h6
  • Product Group B0210
  • Sutton Designation N
  • Geometry R30
  • Type Ballnose Endmill
  • Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
  • Finish Aluminium Chromium Nitride (AlCrN)
  • Flutes 4
  • Group Code E558
SKU: A0129417

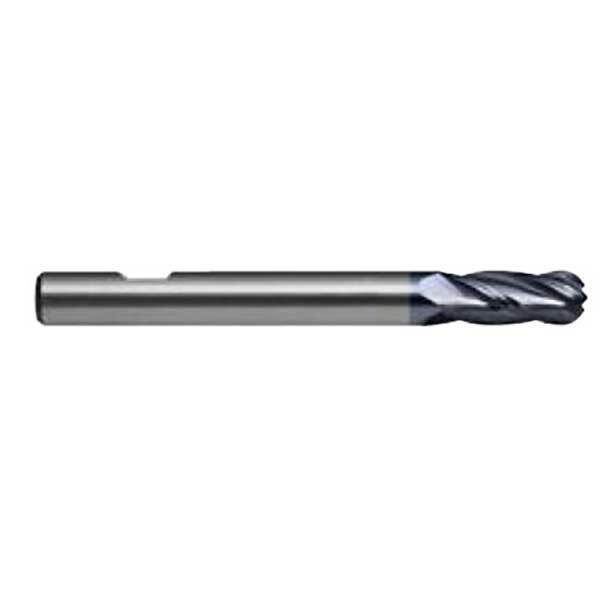

Sutton E5580200 2 x 50mm 4 Flute Ball Nose Endmill Carbide AlCrN

4 Flute Ballnose Endmill - R30 N - Long Reach
