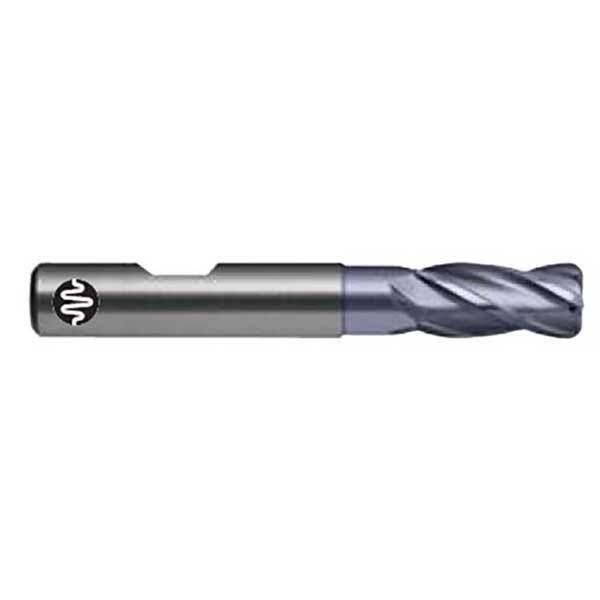

Sutton E560 4 Flute Ball Nose Endmill Carbide - Sutton Tools

Description

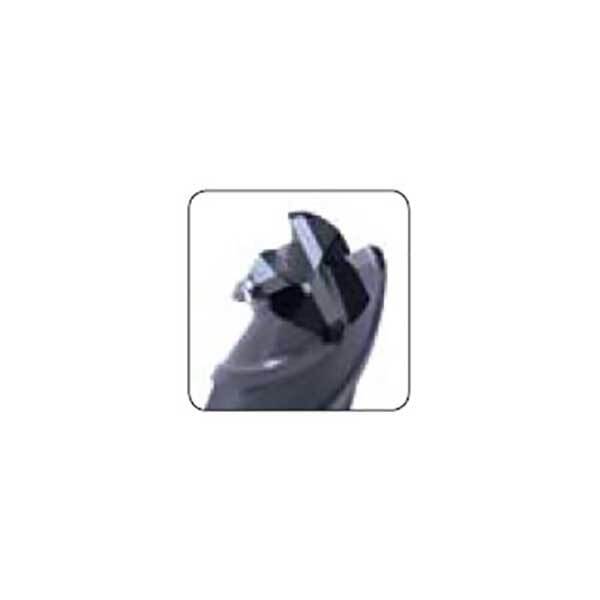

4 Flute Endmill R35/38 UNI - Corner Radius - Harmony

For precision finishing applications

Features

For precision finishing applications.
Ideally suited to materials up to 1300 N/mm2.
AlCrN for longer tool life

Specifications

Designation: UNI
Material: VHM-ULTRA
Finish: AlCrN
Shank Form: HB
Helix Angle: R30
Shank Tolerance: h6

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
Optimal for Steel - High alloy, cast & tool- 200 HB
Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
Optimal for Cast Iron, Malleable – Ferritic- 130 HB
Optimal for Cast Iron, Malleable – Pearlitic- 230 HB

Specifications

AIMS SKU A0129430

Brand Sutton Tools

Model Number E5600303

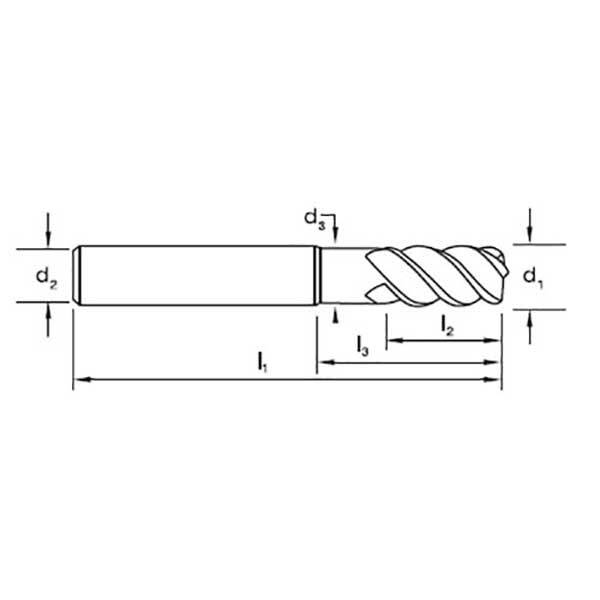

System of Measurement DIN6527L

Cutting Tip (mm) 3

Overall Length (mm) 57

Shank (mm) 6

Flute Length (mm) 8

Shank Form HB

Shank Tolerance h6

D3 (mm) 3.7

Rad 0.3

L3 Reach Length (mm) 19

Product Group B0210

Sutton Designation UNI

Geometry R35/38

Type Endmill Harmony
Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
Finish Aluminium Chromium Nitride (AlCrN)
Flutes 4
Group Code E560
