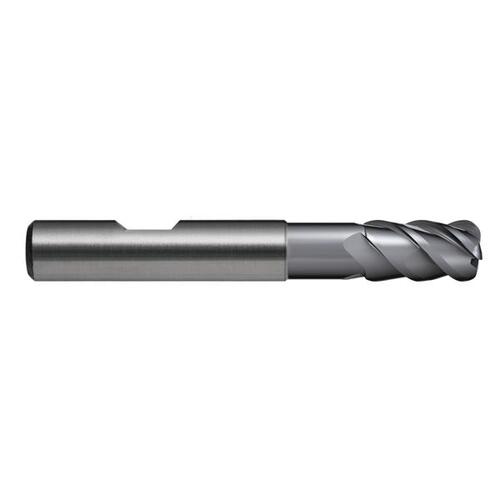

Sutton E569 4 Flute Corner Radius Endmill Carbide - Sutton Tools

Description

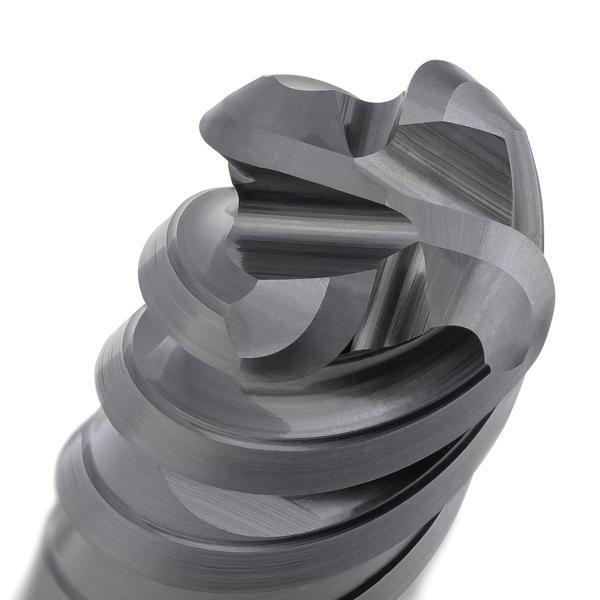

4 Flute Endmills - R50 VH - Corner Radius - Harmony DUO

VHM-ULTRA grade of carbide for high performance.

Features:

Endmill, 4 Flute, R50-VH, Cnr Rad, Harmony DUO for high performance.
Dual stepped core for optimal stability.
Ideal design for hard machining.
Suitable for materials up to 63 HRC.
Aldura for longer tool life.

Specifications:

Designation: VH
Material: VHM-ULTRA
Finish: Aldura
Shank Form: HB
Helix Angle: R50
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Corner Radius
Type: N (finishing)
Standard: DIN6527L
Rake Angle: -14

Applications:

Optimal for Hardened steel-55HRC
Optimal for Hardened steel-58HRC
Optimal for Hardened steel-62HRC
Optimal for Cast Iron-55HRC

Specifications

AIMS SKU A0129373

Brand Sutton Tools

Model Number E5690610

System of Measurement DIN6527L

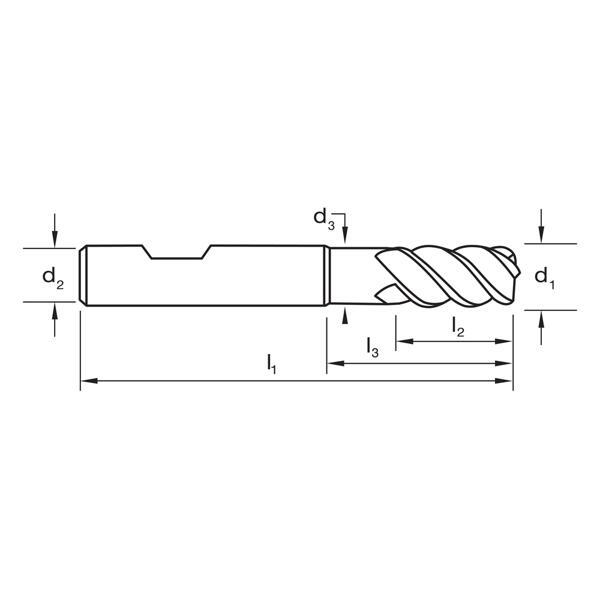

Cutting Tip (mm) 6

Overall Length (mm) 57

Shank (mm) 6

Flute Length (mm) 13

Helix Angle R50

Shank Form HB

Point Form Corner Radius

Shank Tolerance h6

D3 (mm) 5.5

Point Tolerance h10

Rake Angle -14

Rad 1

L3 Reach Length (mm) 21

Sutton Designation VH

Type Endmill Harmony DUO
Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
Finish Aldura
Flutes 4
Item Type N (finishing)
Group Code E569
