Description

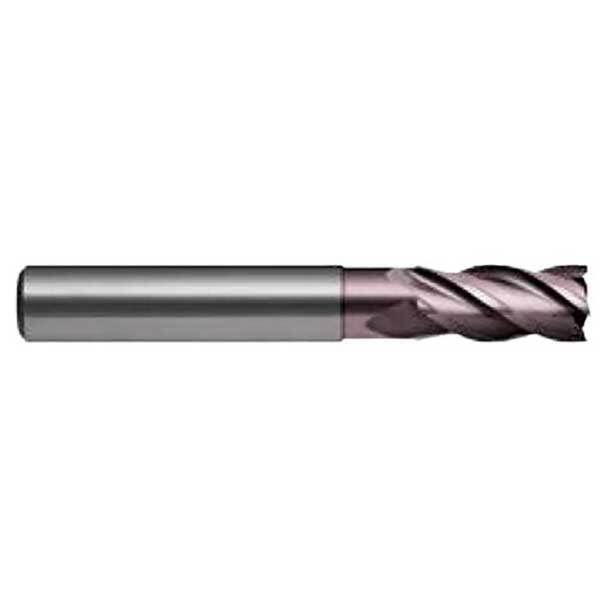

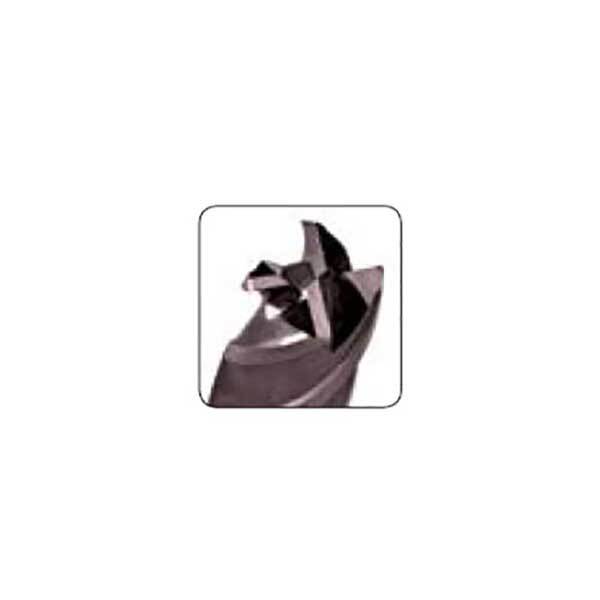

4 Flute Endmill R35/38 Regular Tecline

  • VHM-ULTRA grade of carbide for high performance.
  • 35/38° variable flute helix for chatter-free milling.
  • Suitable for materials up to 1600 N/mm2.
  • TiAlN for longer tool life

Specifications

  • Material: VHM-ULTRA
  • Finish: TiAlN
  • Shank Form: HA
  • Helix Angle: R35/38
  • Shank Tolerance: h6
  • Sutton Designation: N

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)-125HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-190HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-250HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-270HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-300HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements-180HB

Specifications

  • AIMS SKU A0129776
  • Brand Sutton Tools
  • Model Number E6350300

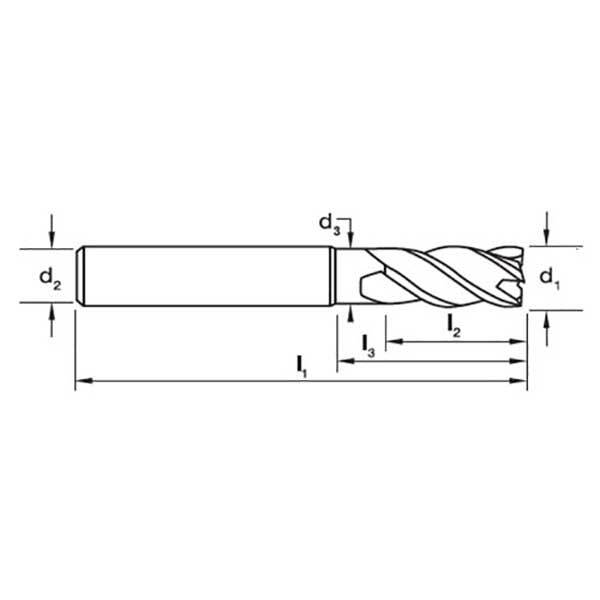

  • System of Measurement DIN6527L
  • Cutting Tip (mm) 3
  • Overall Length (mm) 57
  • Shank (mm) 6
  • Flute Length (mm) 8
  • Shank Form HA
  • Shank Tolerance h6
  • D3 (mm) 2.8
  • L3 Reach Length (mm) 19
  • Product Group B0214
  • Sutton Designation N
  • Geometry R35/38
  • Type Endmill Tecline
  • Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
  • Finish Titanium Aluminium Nitride (TiAIN)
  • Flutes 4
  • Group Code E635
SKU: A0129776

Sutton E6350300 3 x 57mm 4 Flute Endmill Carbide TiAlN Regular Tecline HA

4 Flute Endmill R35/38 Regular Tecline

$37.64
