Description

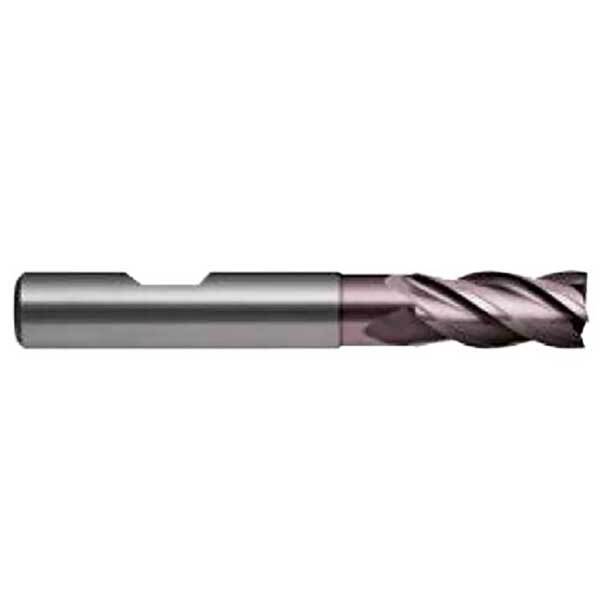

4 Flute Endmill R35/38 Regular Tecline

  • VHM-ULTRA grade of carbide for high performance.
  • 35/38° variable flute helix for chatter-free milling.
  • Suitable for materials up to 1600 N/mm2.
  • TiAlN for longer tool life

Specifications

  • Material: VHM-ULTRA
  • Finish: TiAlN
  • Shank Form: HB
  • Helix Angle: R35/38
  • Shank Tolerance: h6
  • Sutton Designation: N

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)-125HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-190HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-250HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-270HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-300HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements-180HB

Specifications

  • AIMS SKU A0129774
  • Brand Sutton Tools
  • Model Number E6361600

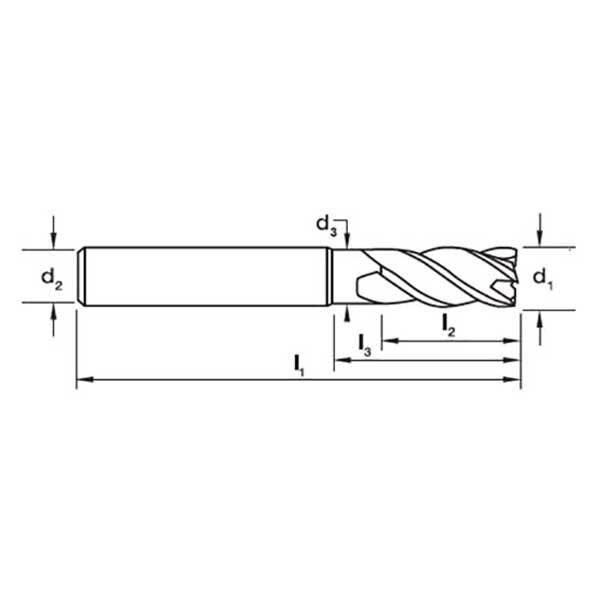

  • System of Measurement DIN6527L
  • Cutting Tip (mm) 16
  • Overall Length (mm) 92
  • Shank (mm) 16
  • Flute Length (mm) 32
  • Shank Form HB
  • Shank Tolerance h6
  • D3 (mm) 15
  • L3 Reach Length (mm) 44
  • Product Group B0214
  • Sutton Designation N
  • Geometry R35/38
  • Type Endmill Tecline
  • Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
  • Finish Titanium Aluminium Nitride (TiAIN)
  • Flutes 4
  • Group Code E636
SKU: A0129774

Sutton E6361600 16 x 92mm 4 Flute Endmill Carbide TiAlN Regular Tecline HB

4 Flute Endmill R35/38 Regular Tecline

$224.33
