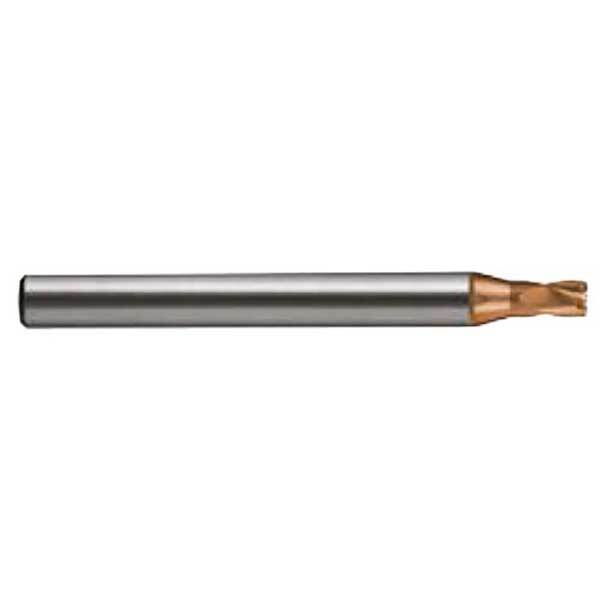

Sutton E650 4 Flute Micro Corner Radius Endmill Carbide TiSiN - Sutton Tools

Description

4 Flute Micro Endmill - R40 N - Corner Radius

Increased feed rates.
Tough coating for long tool life.
Variable helix design for chatter-free machining.
Machine Material 35 to 68HRC

Specifications

Material: VHM
Finish: TiSiN
Shank Form: HA
Helix Angle: R40
Shank Tolerance: h6
Application: N

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-300HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements-300HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements-350HB
Optimal for Steel - High alloy, cast & tool-200HB
Optimal for Steel - High alloy, cast & tool-325HB
Optimal for High-temperature alloys - Ni / Co-based-350HB
Optimal for High-temperature alloys - Ni / Co-based-320HB

Specifications

AIMS SKU A0129753

Brand Sutton Tools

Model Number E6500201

Cutting Tip (mm) 2

Overall Length (mm) 60

Shank (mm) 6

Flute Length (mm) 2

Product Group B0218

Rad 0.3

Shank Form HA

Geometry R40

L3 Reach Length (mm) 6

D3 (mm) -

Sutton Designation N

Shank Tolerance h6

Type Micro Endmill
Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
Finish Titanium Slicon Nitride (TiSiN)
Flutes 4
Group Code E650
