Technical Information

• Length (range): 1350-3800 mm
• Height (range): 700-1000 mm
• Width: 590 mm
• Load Capacity: 80 kg/m²
• Wheel Diameter: 50 mm

Product Benefits:

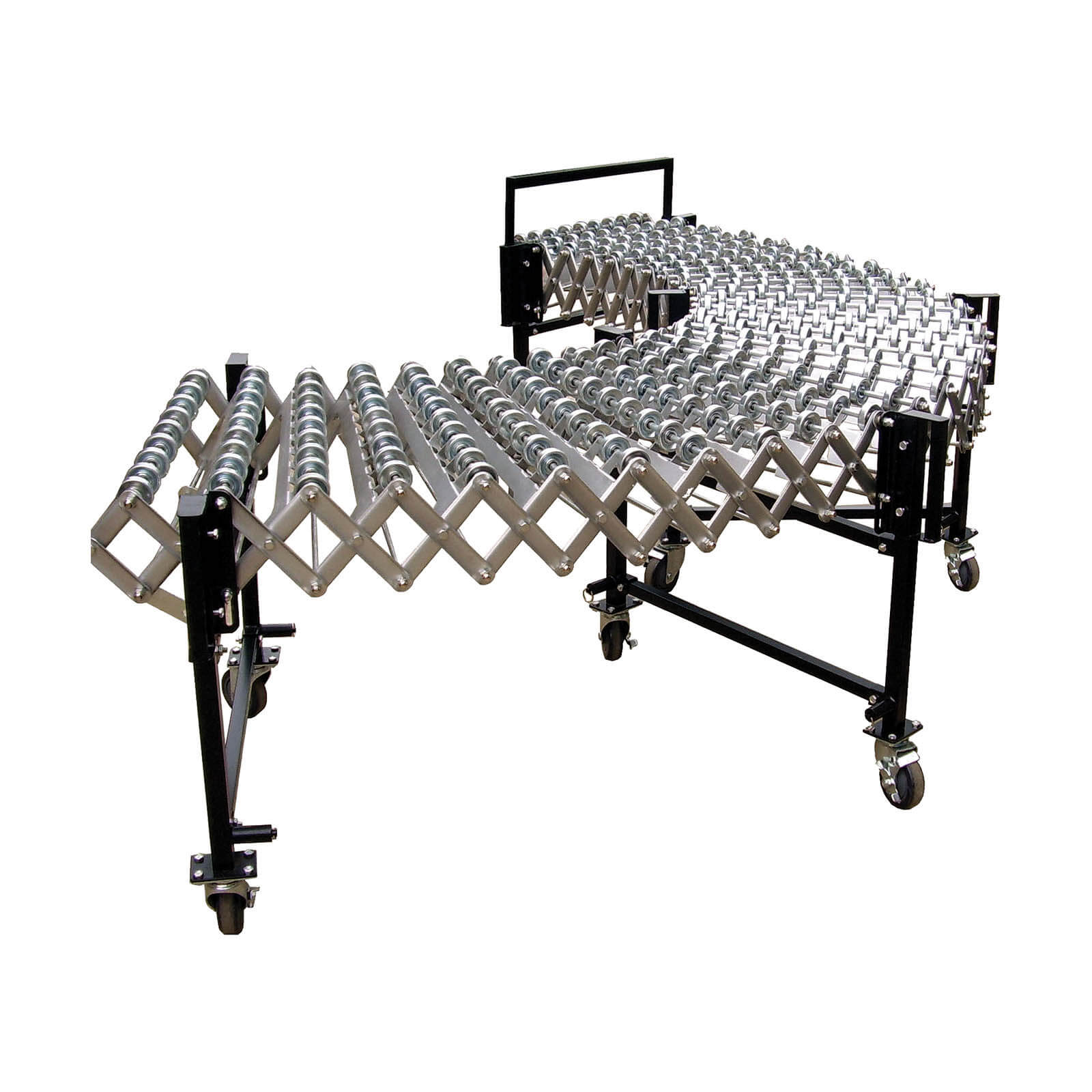

• The expandable conveyor offers convenience and flexibility, allowing operators to work in tight spaces
• Can be extended to over three and a half meters which allows the adaption of the conveyor to move goods directly to a desired location

Applications:

• Most commonly used at the end of a conveyor line for loading trucks and sortation bins
